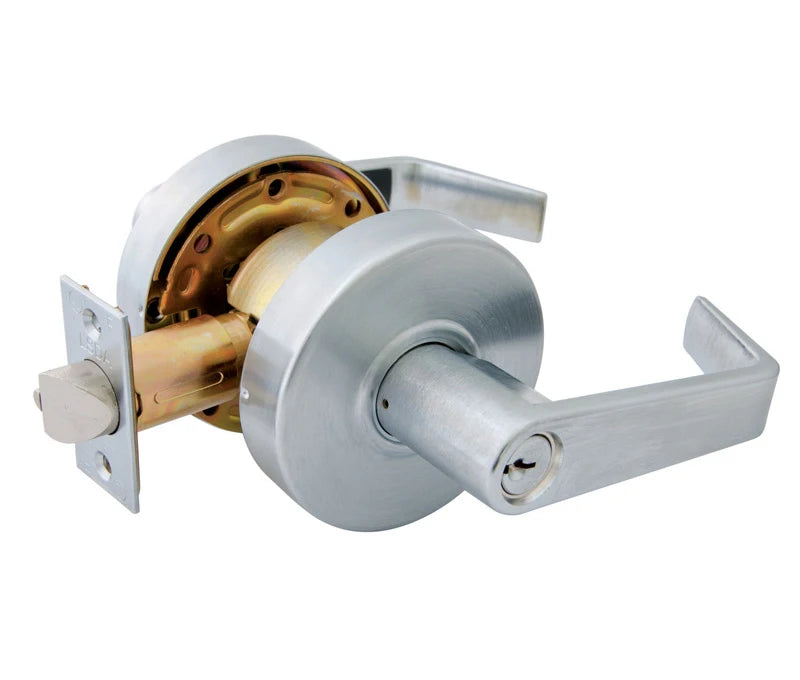

LSDA 800 Series EDMONTON - GRADE 2 - SATIN CHROME
Sale price
$89.95
Regular price
$120.00
Shipping calculated at checkout.
Details
The 800-Series locks are designed for use in a variety of commercial applications. Equipped with a UL listed latchbolt, these locks can be used on 3-hour fire doors. Built with independent return springs in each lever and with an optional clutch feature to protect against excessive torque, these levers resist sagging.
The L-shaped lever design with less than 1/2" gap between the handle and the door meets most accessibility codes. Compatible with many retrofit cylinders such as LSDA C500, Ilco, GMS and most High-Security brands including Medeco, Assa, Schlage Primus, Kaba Peaks, etc.
DETAILS
| Keying | Keyed Different |
|---|---|
| Cylinder | SC4 6-Pin KD (For replacement options see Benefits & Applications) |
| Design Style | Edmonton (ED) |
| Door Prep | 2-1/8" diameter cross bore; 1" edge bore |
| Door Thickness | 1-3/8" - 2" |
| Function | Varies |
| Grade | Grade 2 - Medium Duty Commercial / Heavy Duty Residential |
| Handing | Field Reversible |
| Included in package | Installation Instructions 2 Keys |
| Industry Finish | US26D/626 Satin Chrome |
| Keyway | Schlage C |
| Knob/Lever | Lever |
| Latch/Bolt/Backset | 2-3/4" |
| Manufacturer | LSDA |
| Pinning | 6-Pin, Keyed 5-Pin |
| Series | 800 |
| Standards / Ratings | ANSI/BHMA 156.2 Series 4000 Grade 2; UL Listed Latches (USA and Canada) for 3-hour fire doors |
| Strike | ASA 4-7/8" |
| Thru Bolting | Yes |
| Type - Additional Info | Cylindrical |
