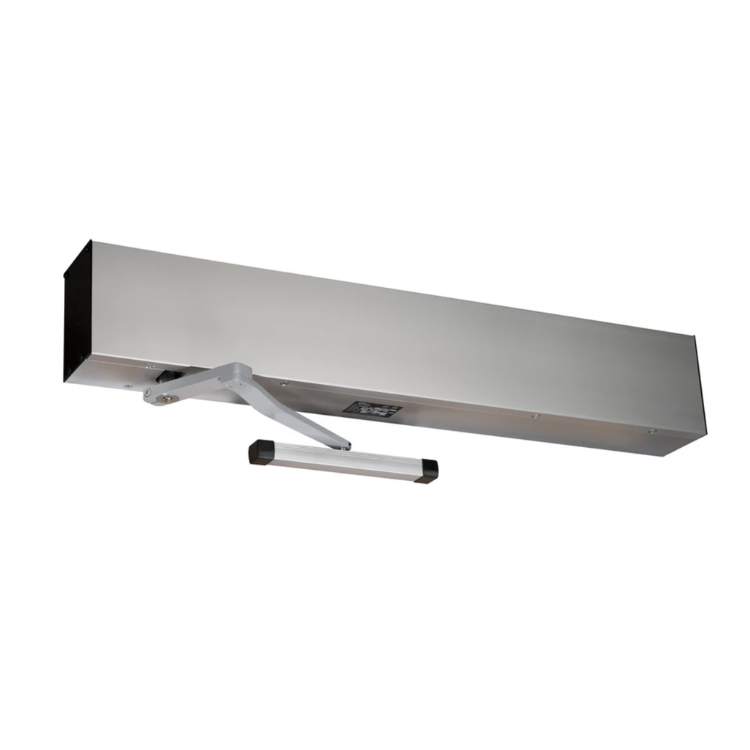

Ditec HA-8 SP Low Energy Operator

$1,495.00 $1,595.00

Shipping calculated at checkout.

Push or Pull

Handing

Color

View Cart

All about the Ditec HA-8 SP Low Energy Operator

ADA Automatic Door Operator for Commercial Applications

The Ditec HA8-SP Low Energy Door Operator is a commercial-grade automatic swing door solution designed for ADA-compliant access, smooth operation, and long-term reliability in high-traffic environments.

Engineered for healthcare facilities, schools, retail storefronts, offices, and public buildings, the HA8-SP delivers quiet, controlled door automation for both push and pull applications.

Why Choose the Ditec HA8-SP?

If you need a dependable ADA door operator that balances performance with cost, the HA8-SP is one of the most widely trusted solutions on the market.

✔ ADA Compliant (ANSI A156.19) low-energy operation
✔ Supports doors up to ~550 lbs
✔ Works with right-hand or left-hand doors
✔ Compatible with push plates, wave sensors, and access control systems
✔ Ideal for retrofits or new installations
✔ Smooth, quiet motor for user comfort and accessibility

Built for Commercial & Institutional Use

The HA8-SP is specifically designed for moderate to high-traffic environments, including:

Hospitals & healthcare facilities
Schools & universities
Airports & transportation hubs
Retail stores & restaurants
Office buildings & government facilities.

Key Features & Specifications

Operator Type: Low Energy Automatic Swing Door Operator
Model: HA8-SP (Standard Profile)
Mounting: Push or Pull / Header Mounted
Handing: Non-handed (field configurable)
Door Weight Capacity: Up to ~550 lbs
Opening Force: Adjustable to meet ADA requirements
Power Supply: 120V AC
Activation Options: Push plates, motion sensors, access control

Flexible Installation Options

The Ditec HA8-SP is designed for maximum installation flexibility, making it a go-to choice for contractors and facility managers.

Supports right-hand and left-hand doors
Configurable for push or pull side mounting
Fits standard commercial door frames (39–41” typical header compatibility)
Easily integrates with existing door systems

ADA Compliance Made Simple

Accessibility isn’t optional—it’s essential.

The HA8-SP is built to meet ADA and ANSI A156.19 standards, ensuring:

Safe opening/closing speeds
Reduced opening force
Reliable operation for users with limited mobility

This makes it an ideal solution for any building requiring barrier-free access.

Compatible Accessories

Pair your operator with:

ADA push plates
Touchless wave sensors
Safety sensors
Access control systems

(Accessories sold separately)

Shipping, Warranty & Support

Fast, reliable shipping across Canada & the U.S.
Manufacturer-backed warranty
Expert support available for product selection and installation guidance

Frequently Asked Questions

Is the Ditec HA8-SP ADA compliant?
Yes, it meets ANSI A156.19 standards for low-energy automatic door operators.

What door size and weight can it handle?
It supports doors up to approximately 550 lbs, depending on configuration.

Can this operator be installed on existing doors?
Yes, it’s ideal for both retrofits and new installations.

Does it work with access control systems?
Yes, it integrates with most commercial access control and activation devices.

Upgrade Your Entrance with Reliable Automation

The Ditec HA8-SP Low Energy Door Operator is a proven solution for safe, accessible, and efficient door automation.

Whether you're upgrading an existing entrance or outfitting a new facility, this operator delivers performance you can trust and compliance you need.

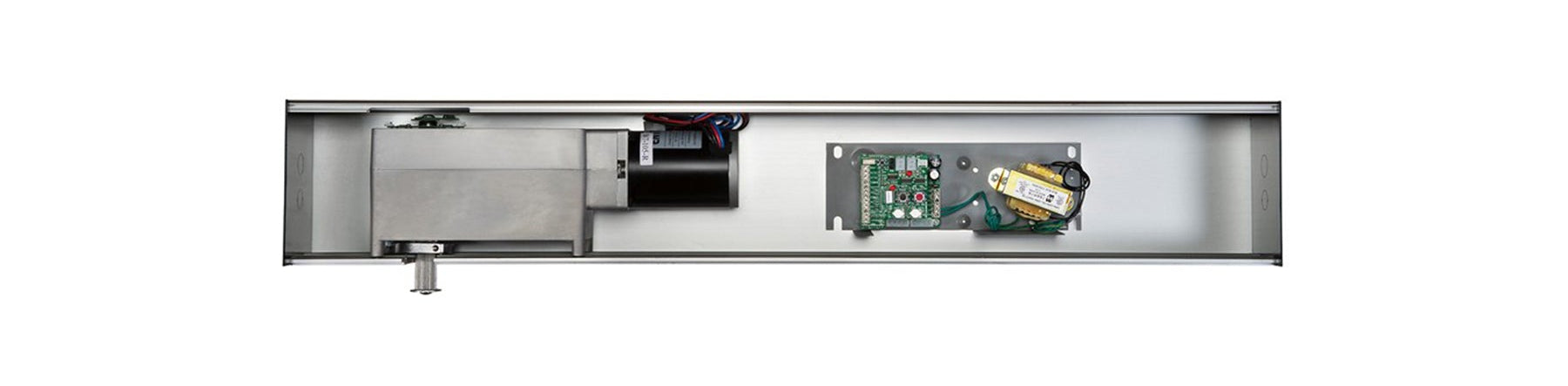

Onboard Components & Accessories

The Ditec HA-8 operator is designed to work with a 3-position switch. This switch provides three key settings for controlling the door's function. The user can select from "On," "Off," and "Hold Open" to easily manage the automatic door's operation based on their needs. This simple, direct control allows for quick adjustments to a door's accessibility and security

The control board acts as the brain of the system, managing all door functions.

Controls opening/closing cycles
Adjusts hold-open time and closing speed
Interfaces with activation devices (push plates, sensors)
Monitors safety inputs and system behavior

Advanced programming allows customization for different environments (healthcare, retail, etc.).

The motor is the core of the HA8 operator, responsible for delivering smooth, controlled door movement.

Low-energy motor designed for quiet operation
Optimized for ADA-compliant opening and closing speeds
Provides consistent torque for doors up to ~550 lbs
Built for continuous commercial use

This is what ensures the door opens safely without excessive force.

This component transfers power from the motor to the door arm.

Precision gearing for smooth, controlled motion
Reduces wear and mechanical stress
Maintains consistent opening force

Critical for durability and long service life.

The HA-8 is compatible with electric strikes from a wide range of manufacturers including HES as well as mag locks, and other electronic retraction devices, making it suitable for electronic access control requirements.

A Battery Backup Kit is an optional accessory to ensure continuous operation for mission-critical facilities.

The HA8 operates on standard building power and includes an integrated power system.
