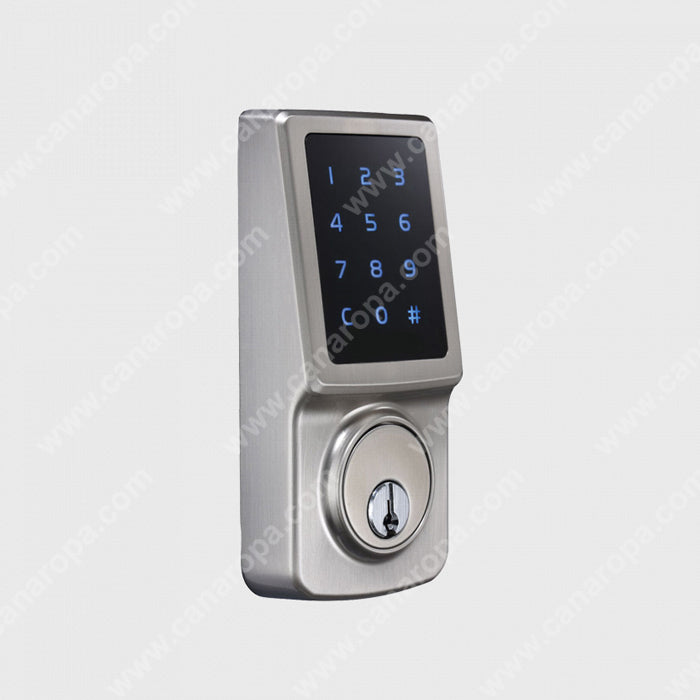

DOREX F400T Electronic RFID Deadbolt Lock | Keypad, RFID Card & Key Access | Grade 2 Commercial Smart Lock

DOREX F400T Electronic RFID Deadbolt Lock | Keypad, RFID Card & Key Access | Grade 2 Commercial Smart Lock

Upgrade your door security with the DOREX F400T Electronic Deadbolt, a commercial-grade 3-in-1 electronic lock that provides secure access using a PIN code, RFID card or fob, or traditional key. Designed as a direct replacement for standard deadbolts, the F400T installs without additional wiring or door modifications, making it an ideal solution for offices, commercial buildings, schools, healthcare facilities, apartments, and restricted access areas.

The DOREX F400T combines the convenience of modern electronic access control with the reliability of a mechanical deadbolt. Supporting up to 50 individual users, this standalone smart deadbolt offers flexible credential management while maintaining ANSI Grade 2 security and a 2-hour fire rating.

Ideal Applications

• Commercial office buildings

• Apartment and condominium common areas

• Schools and educational facilities

• Medical and healthcare offices

• Retail stores

• Government buildings

• Storage rooms

• Employee-only entrances

• Property management

Three Convenient Ways to Unlock

The DOREX F400T gives users multiple secure access options:

• RFID card or key fob

• Personal PIN code

• Traditional mechanical key

This flexible authentication allows businesses to issue RFID credentials, assign unique user codes, or retain keyed access for administrators and emergencies.

Commercial RFID Access Control Without Wiring

Unlike traditional electronic access systems, the F400T installs in place of most standard deadbolts with no wiring, controllers, or additional holes required. It is an excellent upgrade for facilities wanting standalone electronic access control without the expense of a complete access control system.

Compatible with MIFARE® 13.56 MHz RFID technology, the lock supports both Classic and DESFire credentials for secure operation.

Electronic Features

• Supports up to 50 users

  • 25 programmable PIN codes (4–8 digits)

  • 25 RFID cards or key fobs

• 4 renewable single-use temporary access codes

• Auto-lock with adjustable delay

• Vacation Mode disables keypad access

• Optional random keypad scrambling to reduce code guessing

• Double authentication mode requiring both RFID credential and PIN code

• Simple programming and RFID enrollment

• Blue LED illuminated touch keypad

Mechanical Features

• ANSI/BHMA A156.5 Grade 2 certified

• cULus Listed

• 2-hour fire-rated

• Solid steel deadbolt with 1" throw

• Security pin for enhanced resistance against forced entry

• Steel cylinder housing

• Adjustable 2-3/8" or 2-3/4" backset

• Fits doors 1-3/8" to 2" thick (35–51 mm)

• Non-handed design for left or right-hand doors

• Fits standard cylindrical deadbolt preparations

• No additional drilling required

Cylinder & Keying Options

The F400T includes:

• 5-pin Schlage C brass cylinder (drilled for 6 pins)

• Two mechanical keys included

Optional keying configurations are also available, including:

• CX5 High Security cylinders

• Master Key Systems

• Custom keyed-alike options

RFID Technology

The DOREX F400T utilizes secure 13.56 MHz MIFARE® RFID technology, providing fast, reliable credential authentication.

Included:

• 2 RFID cards

Compatible with:

• MIFARE Classic

• MIFARE DESFire credentials

Warranty

• 3-Year Limited Mechanical Warranty

• 1-Year Limited Electronic Warranty

Specifications

Why Choose the DOREX F400T?

The DOREX F400T Electronic RFID Deadbolt delivers commercial-grade security with modern electronic convenience. Whether you're upgrading from a standard deadbolt or implementing standalone access control, it provides secure, flexible access through RFID credentials, PIN codes, and mechanical keys—all without costly wiring or complex installation.
