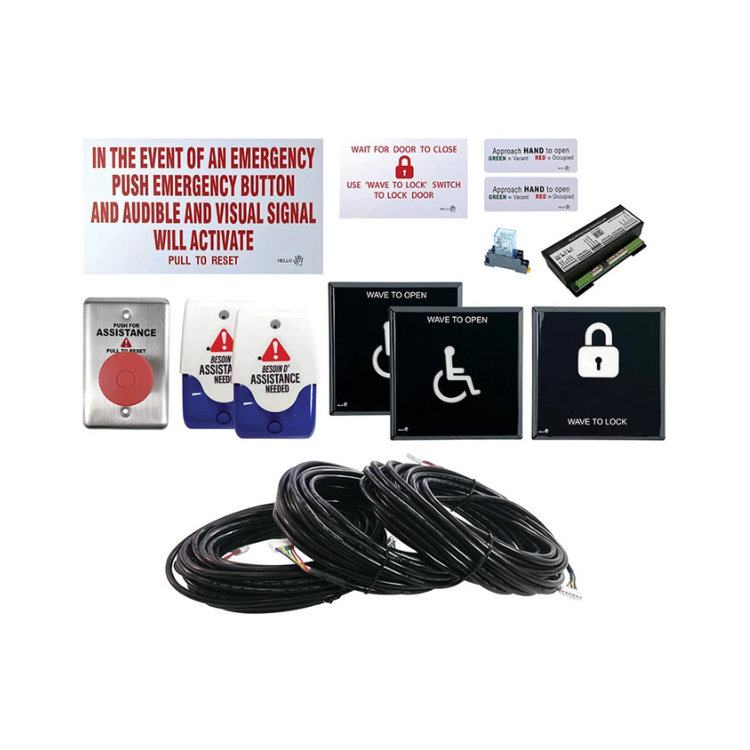

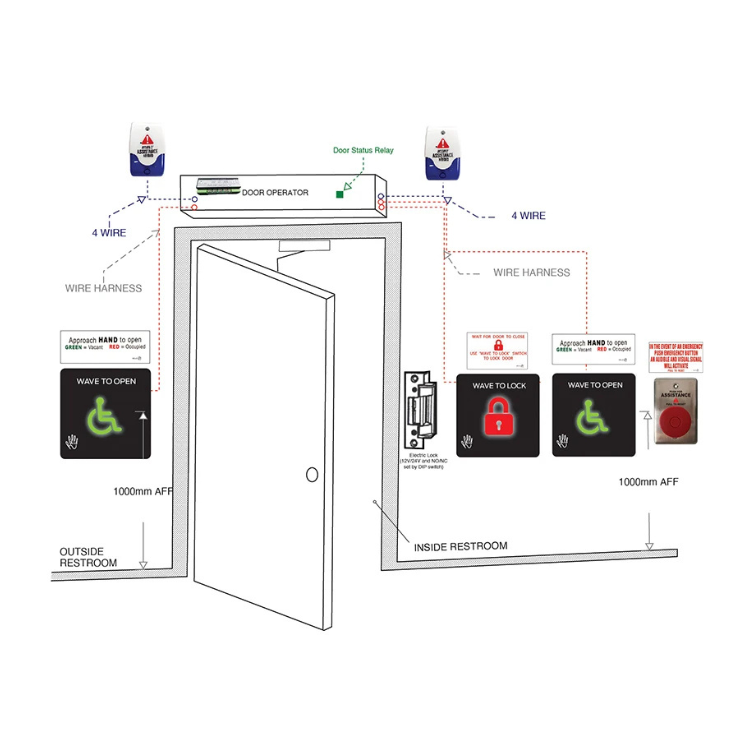

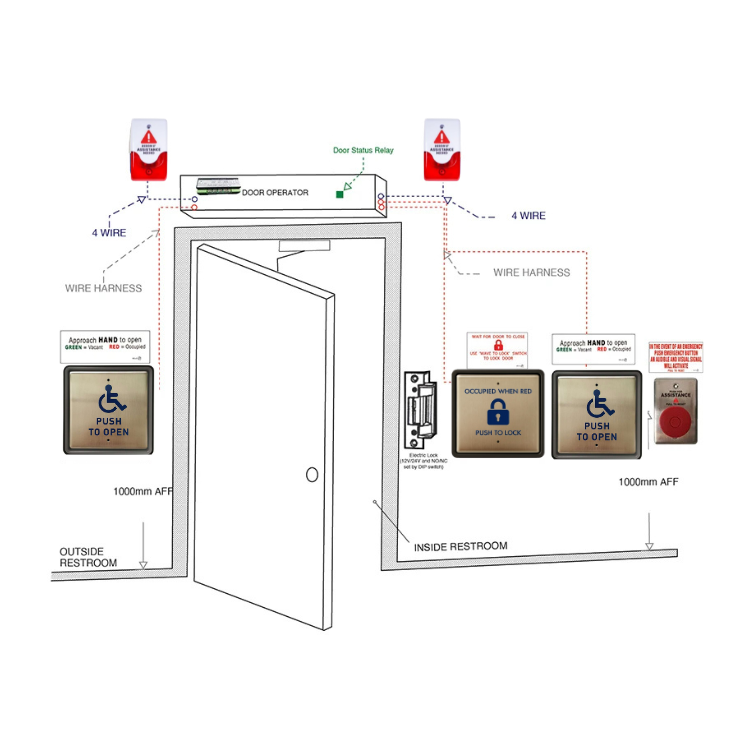

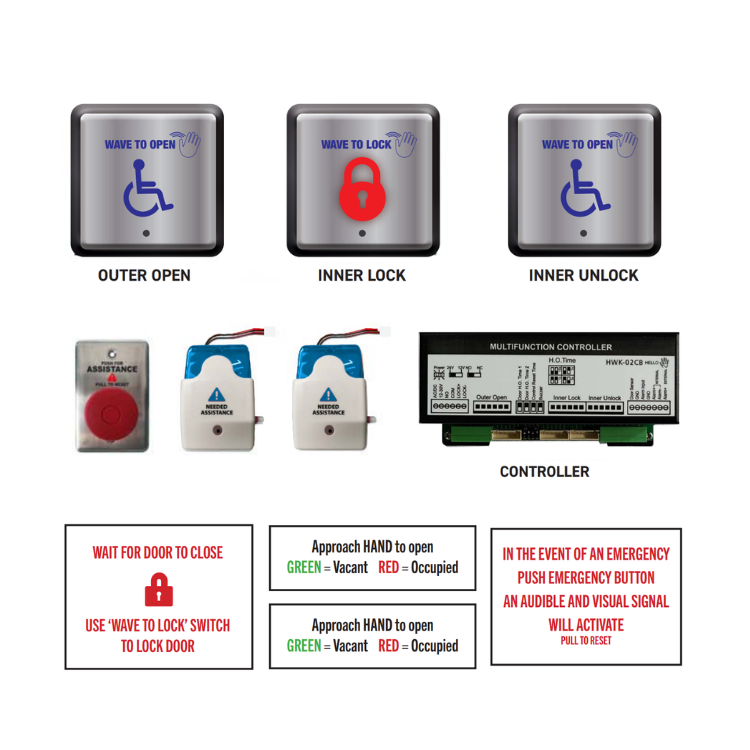

Creating an accessible entry or washroom system doesn't have to be complicated.

Micom Americas, Inc. is a Canadian manufacturer that specializes in automatic swinging and sliding doors.

The MICOM SW800 is a dual-purpose automatic swing door operator that can be set to either a fully automatic or a low-energy application.

MICOM - SW-800

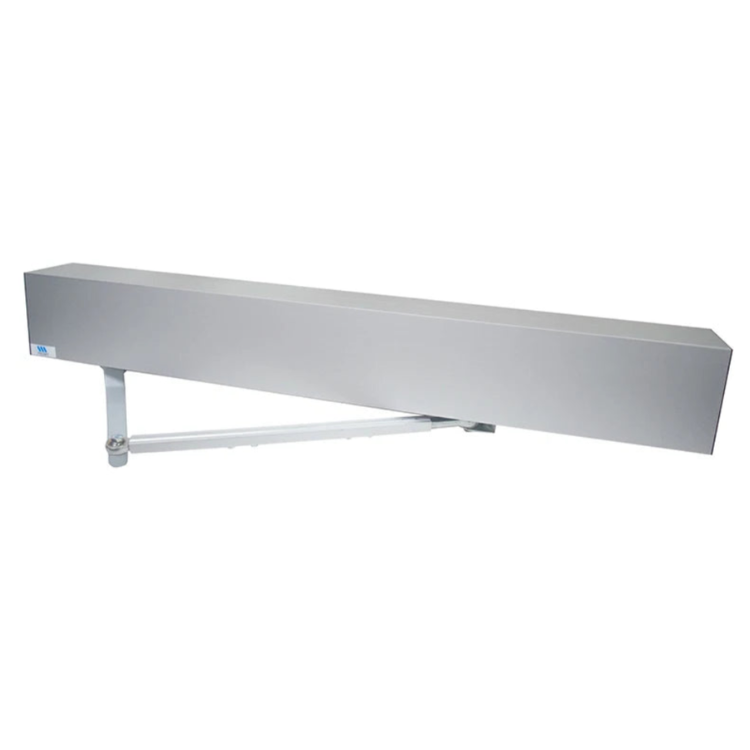

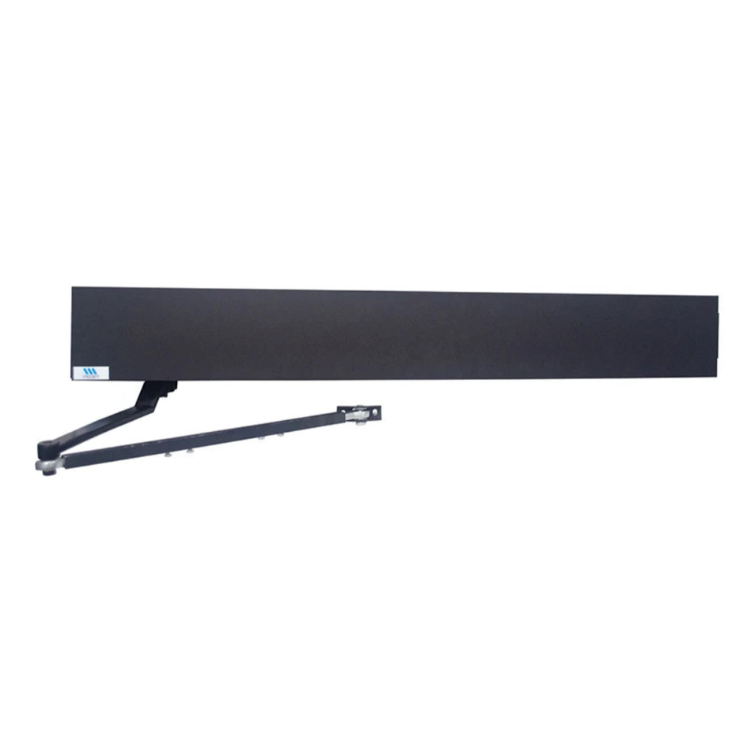

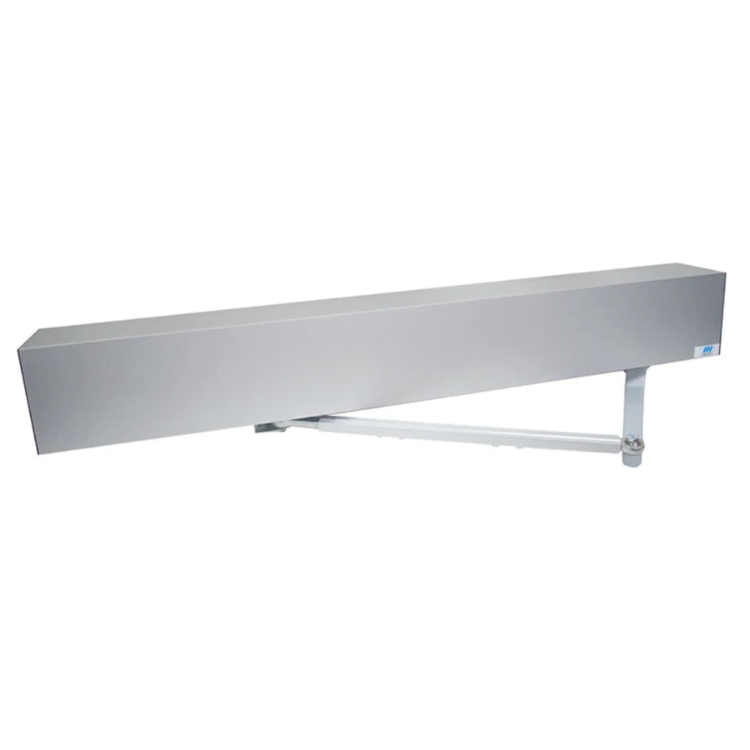

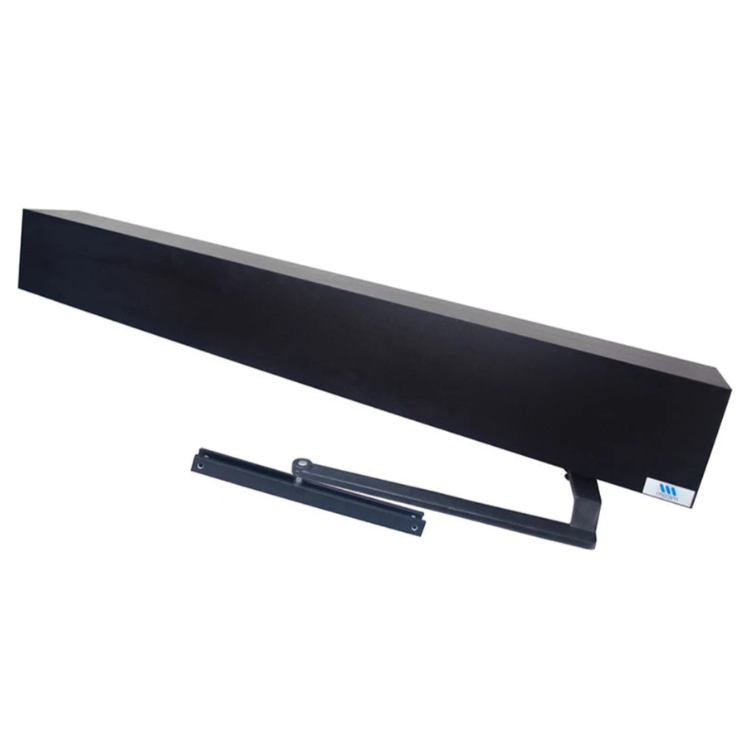

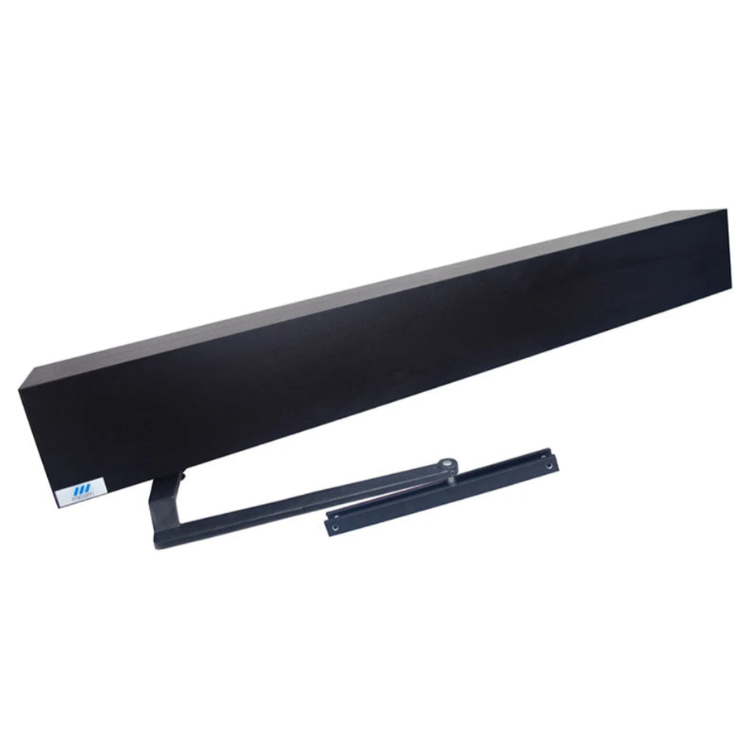

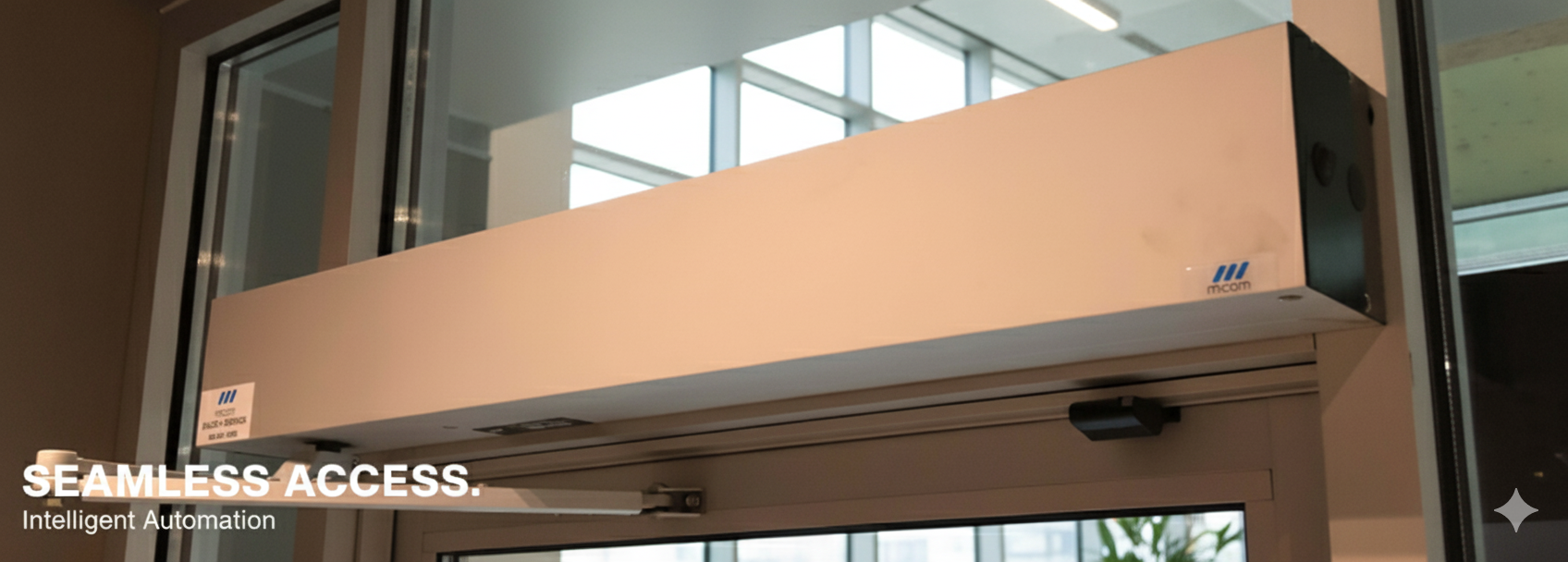

The MICOM SW800 automatic swing door operator is a single, dual-purpose model designed for versatility and performance. Engineered to overcome harsh wind conditions and stack pressure, its flexible design is perfect for a wide range of applications, from high-energy commercial pedestrian traffic to low-energy ADA requirements. This powerful and gentle solution can handle doors weighing up to 700 lbs. and offers improved serviceability for low lifetime maintenance. Its non-handed design and compact, durable construction make it an ideal choice for any project.

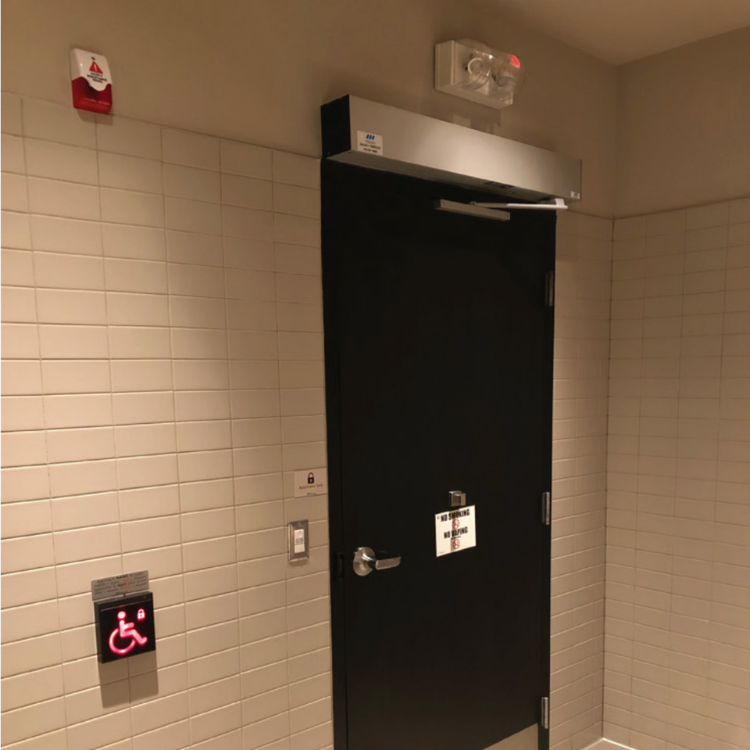

Equipped with unique operating features, the SW800 is engineered to open doors for everyone, including children and those with limited mobility. The system includes obstacle detection on both opening and closing, ensuring safety and compliance. With its intuitive, user-friendly controls, programming and setup can be achieved in minutes. It also offers a selectable Push & Go feature and is the perfect choice for Universal Accessible washrooms and other new and existing buildings. The SW800's technologically advanced gear mechanism allows for easy door opening while prolonging service life, ensuring years of reliable, trouble-free operation.

Shop now

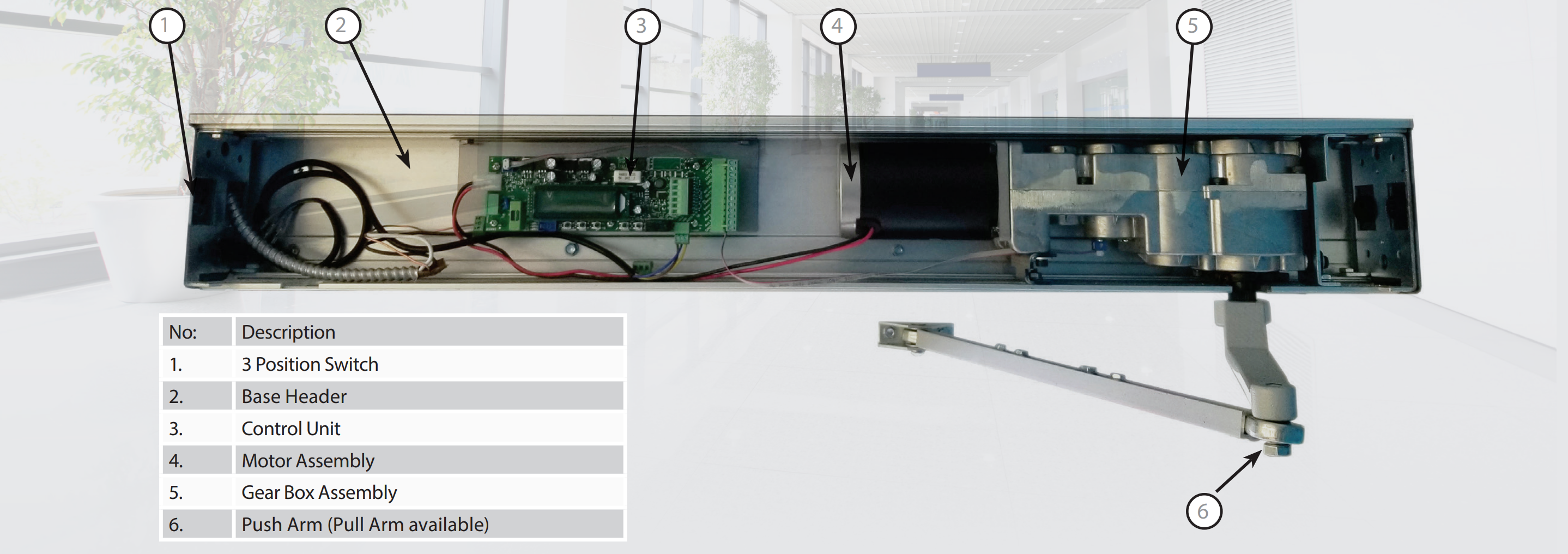

Onboard Components & Accessories

The Micom SW800 operator is designed to work with a 3-position switch. This switch provides three key settings for controlling the door's function. The user can select from "On," "Off," and "Hold Open" to easily manage the automatic door's operation based on their needs. This simple, direct control allows for quick adjustments to a door's accessibility and security

The control unit for the Micom SW800 is a key component that houses the electronics and various inputs for the operator's functions. It features a digital LED display screen that allows for easy programming and setup in minutes. The unit also includes a series of buttons—an Enter, Down, Up, Menu, and Test/Learn button—that provide a user-friendly interface for adjustments.

In addition to these controls, the unit has various connectors and terminals for essential functions, including a gearbox communications cable, an AC power input connector, and a motor connector. It also has an accessory connector terminal and a 12V/24V DC output connector for electronic lock strikes, enabling it to meet electronic access control requirements. This all-in-one control unit simplifies the installation and operation of the door system.

The SW800's motor assembly is a key component of its robust and reliable design. The operator is equipped with a large, powerful 1/4 hp 24VDC permanent magnet motor. This motor is engineered to ensure a long-lasting, trouble-free ownership experience. The motor connector is located on the control unit, which serves as a central hub for all the operator's components.

The gearbox assembly of the SW800 is a technologically advanced component that allows the door to be opened with ease while prolonging its service life. This design offers years of reliable, trouble-free swing door operation. The gearbox also has a communications cable that connects it to the operator's main control unit. The SW800 utilizes an integrated encoder technology, which provides precise door control and positioning at all times.

The SW800 is compatible with electric strikes from a wide range of manufacturers including HES as well as mag locks, and other electronic retraction devices, making it suitable for electronic access control requirements.

A Battery Backup Kit is an optional accessory to ensure continuous operation for mission-critical facilities.

It provides on-board power supply with a total of 1.2 amps of 12VDC and 24VDC to power accessories simultaneously.

Micom SW-800 Installation

The SW800 is designed for a simple and intuitive installation process. The operator will self-learn for weight and apply the correct door speeds and forces required after a quick initialization. It also automatically learns the opening and closing cycles and retains the correct position for latch and back-check settings in its memory. This "self-learn" function streamlines the setup, reducing the need for extensive manual adjustments.

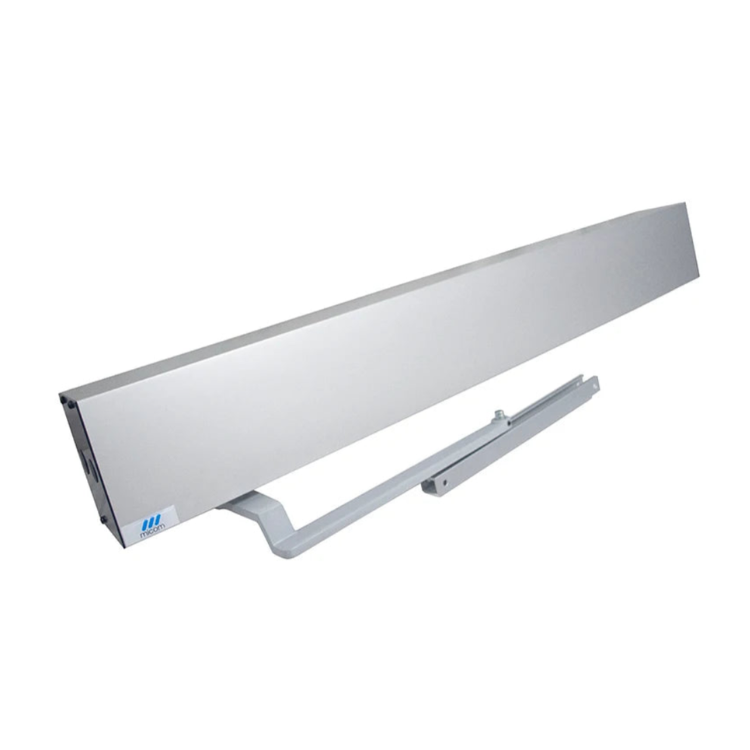

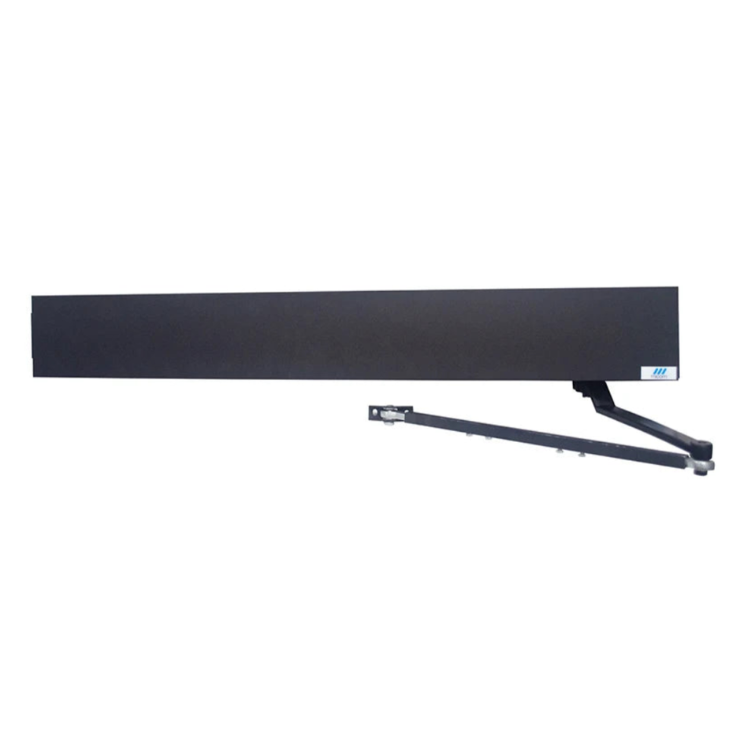

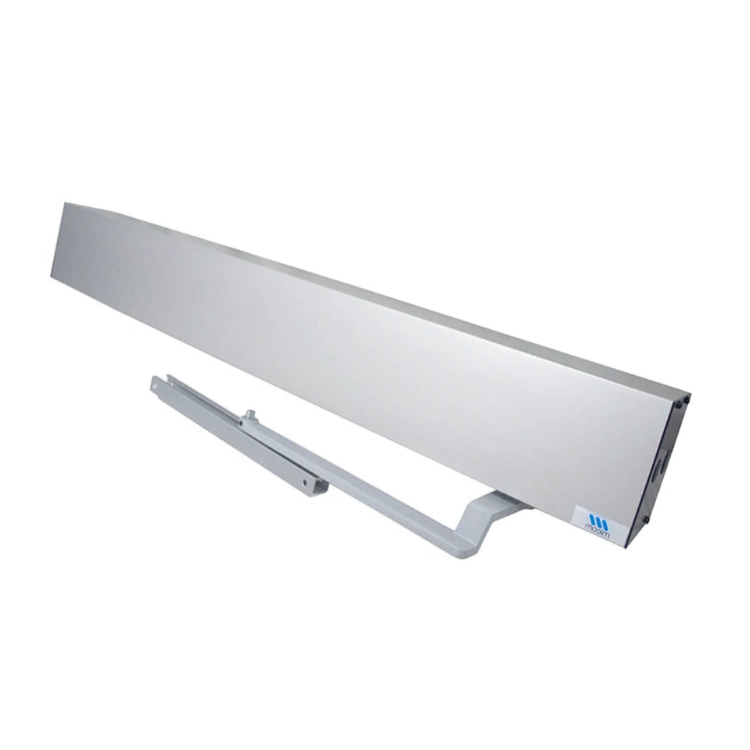

Thanks to its user-friendly controls, the programming and setup of the SW800 can be completed in minutes. This simplicity extends to its design, as it is a non-handed operator that can accommodate Left/Right, Push & Pull applications in a single, compact unit. This means installers don't need to worry about stocking multiple models, as it can be field-changed to suit various door configurations. The SW800 also has an extendable spindle, which can be extended up to 3 inches for applications where the operator needs to be mounted higher than typical.
