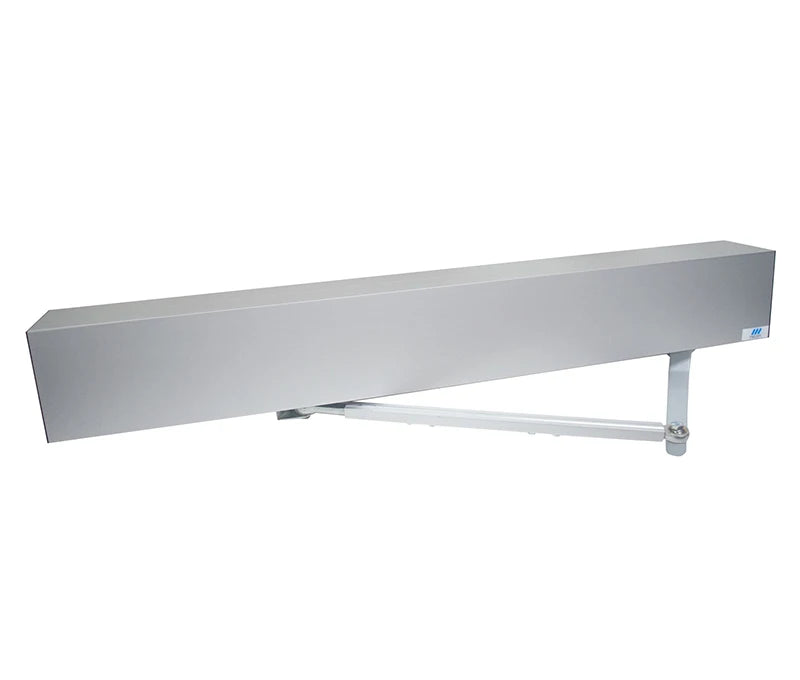

All about the MICOM SW800 SMART SWING 3

ADA Automatic Door Operator for Commercial Applications

The Micom SW800 Smart Swing 3 is a heavy-duty automatic door operator designed for commercial, institutional, and accessibility-focused environments. Engineered for low energy operation and ADA compliance, this system provides smooth, reliable automation for swing doors in offices, healthcare facilities, retail spaces, and public buildings.

Built to handle demanding applications, the SW800 supports doors up to 700 lbs and integrates seamlessly with access control systems, push plates, and safety sensors—making it a strong choice for contractors and facility managers across Canada.

Designed for Commercial and Accessibility Applications

Whether you're upgrading an entrance for accessibility compliance or installing a touchless door solution, the Micom SW800 delivers dependable performance in:

Healthcare facilities and hospitals
Office buildings and corporate spaces
Accessible washrooms
Retail stores and public entrances
Government and institutional buildings

This automatic swing door operator ensures safe, controlled access while improving convenience and reducing physical contact.

Key Features and Benefits

Low energy operation that meets ADA requirements
Heavy-duty performance supporting doors up to 700 lbs
Quiet and smooth operation suitable for professional environments
Advanced control system with programmable settings
Compatible with access control systems including keypads and card readers
Ready for touchless activation using sensors or wave-to-open devices
Durable construction designed for high-traffic commercial use

Technical Specifications

Application: Swing doors (single or paired)
Maximum door weight: Up to 700 lbs
Operation type: Low energy automatic operator
Compliance: ADA and ANSI/BHMA standards
Activation methods: Push plates, motion sensors, access control systems
Mounting: Surface applied

ADA-Compliant Automatic Door Solution

The SW800 is designed to meet ADA accessibility standards, making it suitable for buildings that require barrier-free access. Its low energy operation ensures safe opening and closing speeds while improving usability and reducing liability.

Compatible With Access Control and Door Hardware

This automatic door opener integrates with a wide range of commercial hardware, including:

Electric strikes
Magnetic locks
Access control systems
Push-to-open buttons
Touchless activation sensors

This makes it ideal for creating a fully automated and secure entry system.

Built for Canadian Commercial Applications

Whether used in new construction or retrofit projects, the Micom SW800 is well suited for Canadian commercial environments and compliance requirements.

Need Assistance or Volume Pricing?

If you are planning a multi-door installation or need help selecting the correct configuration, contact our team for product guidance, compatibility support, and contractor pricing options.

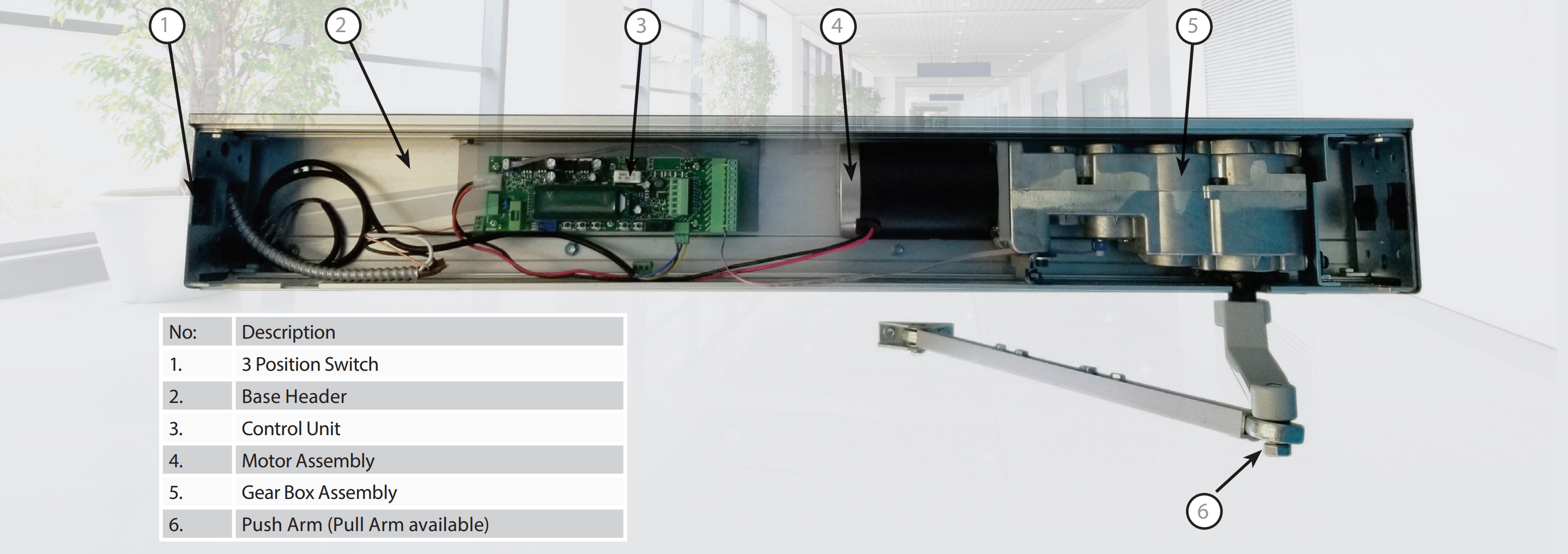

Onboard Components & Accessories

The Micom SW800 operator is designed to work with a 3-position switch. This switch provides three key settings for controlling the door's function. The user can select from "On," "Off," and "Hold Open" to easily manage the automatic door's operation based on their needs. This simple, direct control allows for quick adjustments to a door's accessibility and security

The control unit for the Micom SW800 is a key component that houses the electronics and various inputs for the operator's functions. It features a digital LED display screen that allows for easy programming and setup in minutes. The unit also includes a series of buttons—an Enter, Down, Up, Menu, and Test/Learn button—that provide a user-friendly interface for adjustments.

In addition to these controls, the unit has various connectors and terminals for essential functions, including a gearbox communications cable, an AC power input connector, and a motor connector. It also has an accessory connector terminal and a 12V/24V DC output connector for electronic lock strikes, enabling it to meet electronic access control requirements. This all-in-one control unit simplifies the installation and operation of the door system.

The SW800's motor assembly is a key component of its robust and reliable design. The operator is equipped with a large, powerful 1/4 hp 24VDC permanent magnet motor. This motor is engineered to ensure a long-lasting, trouble-free ownership experience. The motor connector is located on the control unit, which serves as a central hub for all the operator's components.

The gearbox assembly of the SW800 is a technologically advanced component that allows the door to be opened with ease while prolonging its service life. This design offers years of reliable, trouble-free swing door operation. The gearbox also has a communications cable that connects it to the operator's main control unit. The SW800 utilizes an integrated encoder technology, which provides precise door control and positioning at all times.

The SW800 is compatible with electric strikes from a wide range of manufacturers including HES as well as mag locks, and other electronic retraction devices, making it suitable for electronic access control requirements.

A Battery Backup Kit is an optional accessory to ensure continuous operation for mission-critical facilities.

It provides on-board power supply with a total of 1.2 amps of 12VDC and 24VDC to power accessories simultaneously.
