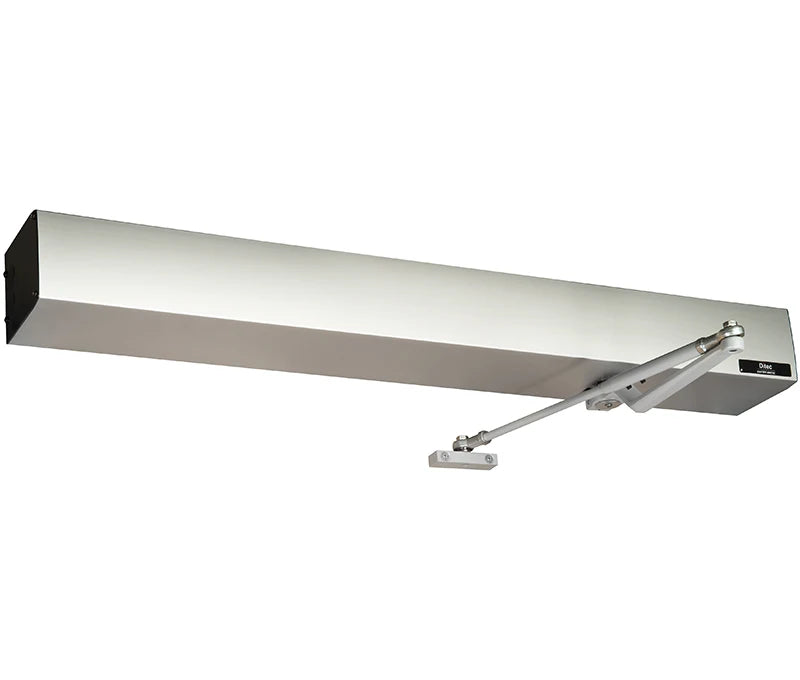

Hunter - Ditec HA-9 Full Featured - Low Energy Operator

The HA9 Heavy-Duty Automatic Door Operator is designed for durability, reliability, and seamless integration into high-traffic commercial environments. Built with heavy-duty construction and an electro-mechanical design, it ensures quiet operation and long-lasting performance. Its plug-n-play installation and one-touch learn cycle make setup quick and hassle-free, while power assist and stack pressure compensation enhance smooth functionality. With smart integration capabilities, it supports electric strikes, security systems, and activation devices, making it a versatile solution for modern buildings. Safety is a top priority with features like lock kick for secure latching, stop on stall, reverse on obstruction, and sensor monitoring. Designed to withstand demanding use, the HA9 is energy-efficient, ANSI-compliant, and UL-listed, making it an excellent choice for businesses, hospitals, and public facilities that require a robust and efficient door automation system.

Quality & Durability

• Electro-mechanical design ensures reliable and quiet operation.
• Heavy-duty commercial construction with cast alloy arms for longevity.
• Engineered door stop resists abuse in high-traffic areas.

Innovative Features

• Power Assist for smooth door movement.
• One-Touch Learn Cycle simplifies setup.
• Plug-n-Play design for fast, hassle-free installation.
• Stack Pressure Compensation adapts to environmental conditions.

Technical Specifications

• Header Size: 4 1/8” x 5 1/8”
• Motor Type: Electro-mechanical
• Door Width: Up to 48” (single) / 96” (pair)
• Handing: Non-handed (fits both left & right-hand doors)
• Voltage: 120 VAC
• Microprocessor Control: Yes
• Push & Go Feature: Standard (selectable)
• Auxiliary Power: 24VDC @ 1/2 amp (upgradable to 1.1 amps)
• Surface Mounting: Yes
• Push Reveal: Up to 14” | Pull Reveal: Up to 2 3/8”
• Standards & Compliance: ANSI A156.19, UL 325/UL10C

Smart Integration & Energy Efficiency

• Compatible with safety & activation devices and integrates with building security systems.
• Electric strike integration with lock retry for secure access control.
• Energy-saving design ensures low operational costs.

Built-in Safety Features

• Lock Kick ensures a secure latch during fire/safety events.
• Stop on Stall & Reverse on Obstruction prevent damage or injury.
• Sensor Monitoring for added safety and functionality.

Designed for High-Traffic & Long-Term Use

• Highly durable construction built to withstand heavy use.
• Ideal for commercial & high-traffic environments.

Ditec HA-9 cut sheet

PUSH INSTALLATION:

PULL INSTALLATION:
