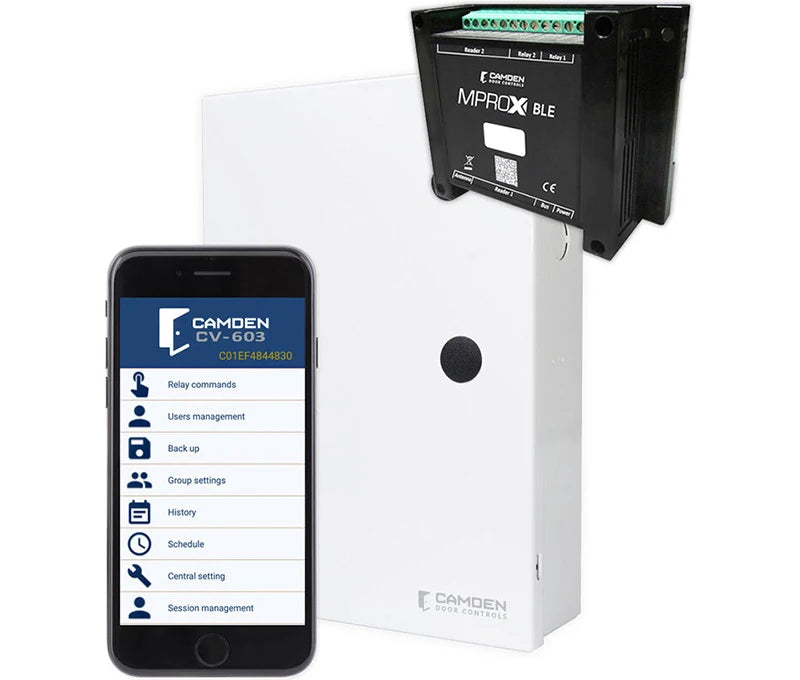

Camden CV-603PS K1 Bluetooth Access Control System

The Camden CV-603PS-K1 is a professional-grade security solution designed for seamless door and gate management. Supporting up to 2000 users, this versatile system integrates smartphone technology with traditional hardware to provide robust access monitoring for commercial buildings, parking garages, and gated communities.

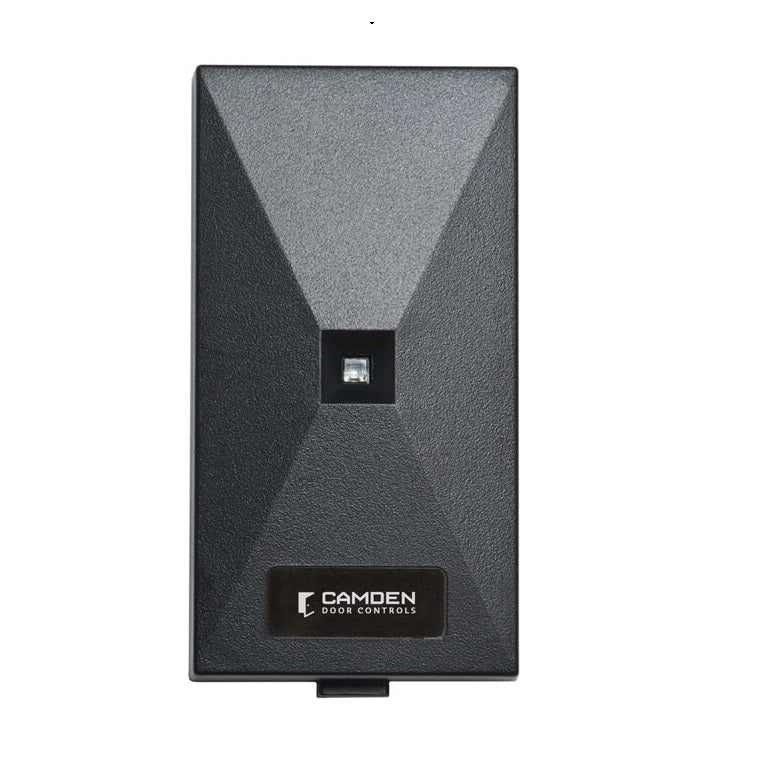

This comprehensive kit includes the CV-7400 AWID/HID protocol reader and a CV-KTH HID proximity tag, ensuring you have the essential components for a high-security installation right out of the box.

Modern Mobile Management

System administration is handled through a dedicated Bluetooth Low Energy (BLE) app compatible with both Apple and Android devices. This eliminates the need for complex PC-based software, allowing security managers to update user permissions and configure system settings directly from a mobile device.

Advanced Wireless Integration

In addition to proximity card access, the controller features a built-in 433Mhz receiver. This allows for the integration of two-button wireless key fobs, making it an ideal choice for vehicle gate control and long-range entry requirements.

Technical Specifications and Features

• User Capacity: Manage up to 2000 individual users with ease

• Multi-Protocol Support: Wiegand reader protocol compatible with 26, 30, 34, and 37 bits

• Dual Door Control: Simplified management for two entry points with dedicated inputs for REX devices and door position switches

• High-Level Security: Integrated anti-passback functionality to prevent unauthorized entry sharing

• Encrypted Transmission: AES128 encryption and rolling codes for all transmitter communications

• Flexible Locking Options: Form C relays support both fail-safe and fail-secure electric locking hardware

• Alarm Integration: Includes a common alarm relay to trigger external security or notification devices

• Security Tiering: Five configurable operator levels to delegate administrative access

• Power Requirements: Operates on a standard 12 VDC power supply

• Complete Kit: Ships with the CV-7400 reader and CV-KTH proximity tag included

• Reliability: Backed by the official manufacturer's warranty

Fully compatible with the following Camden accessories:

• CV-CSH: HID® Format Clamshell Cards

• CV-KTH: HID® Format Key Fobs
