HES 9400‑630 Slim‑Line Electric Strike – Surface Mounted, Fail Safe/Fail Secure, 12/24 VDC
$545.00
Shipping calculated at checkout.
Details

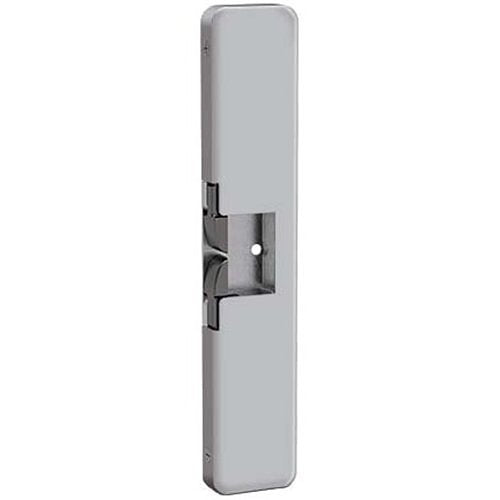

The HES 9400‑630 Electric Strike is a Grade 1 slim‑line surface mounted strike engineered for use with rim exit devices featuring a 1/2″ Pullman latch. Designed for metal and wood frame applications, its sleek, fully encased stainless steel body installs without cutting into the frame — ideal for retrofit or new installations.
This versatile strike offers dual voltage (12/24 VDC) power, with field‑selectable fail safe or fail secure operation, making it compatible with a wide range of access control systems. Its robust construction delivers 1,500 lbs static strength, 70 ft‑lbs dynamic strength, and up to 500,000 cycles of endurance, meeting stringent commercial security standards.
| Specification | Details |
|---|---|
| Brand | HES |
| Model | 9400‑630 |
| Product Type | Electric Strike (Surface Mounted) |
| Finish | 630 Satin Stainless Steel |
| Mount Type | Surface Mounted |
| Frame Application | Metal & Wood |
| Voltage | Dual Voltage: 12/24 VDC Continuous Duty |
| Fail Mode | Field‑Selectable: Fail Safe / Fail Secure |
| Latch Compatibility | Rim Exit Devices with 1/2″ Pullman Latch |
| Static Strength | 1,500 lbs |
| Dynamic Strength | 70 ft‑lbs |
| Endurance | ~500,000 Cycles |
| Handing | Non‑Handed |
| Adjustability | Horizontal Adjustment |
| Certification | ANSI/BHMA A156.31 Grade 1, UL 1034 Burglary‑Resistant, UL 294 |
| Weight | ~2 lbs (approx.) |
LBM - Latchbolt Monitor is a single switch that monitors the position of the latchbolt in the pocket.
