A loose lever, a latch that sticks, or a lock that no longer fits your access needs is more than an annoyance. When you replace a door lever set, the goal is not simply to update the appearance of the door. The new hardware must match the door preparation, operate freely, latch securely, and provide the right level of control for the opening.
For a bedroom or home office, that may mean a dependable privacy function. For a storefront, clinic, or managed property, it may mean a keyed entry lever built for repeated daily use. Taking a few measurements before ordering prevents the most common installation problems and helps ensure the finished opening performs as intended.
Confirm Why You Are Replacing the Lever Set
Start with the function of the door, not the finish. Lever sets are available in passage, privacy, keyed entry, storeroom, classroom, office, and other functions. These functions control who can enter, whether the outside lever stays locked, and how the door can be opened in an emergency.
A passage lever has no locking function and works well on closets or connecting doors. A privacy lever is common on bathrooms and bedrooms, with an inside lock and emergency release from the outside. Keyed entry hardware is appropriate where controlled access is needed, such as exterior residential doors, private offices, or supply rooms.
Commercial applications require closer attention. A storeroom function keeps the outside lever locked at all times and requires a key for entry, while the inside lever always allows free egress. This is a practical choice for storage areas and back-of-house rooms. An office function may allow the keyholder to lock or unlock the outside lever while still allowing the lever to remain unlocked during business hours.
Never use a locking function that can restrict emergency exit on a required egress door. Exterior doors, fire-rated doors, and public-facing openings may be subject to building, fire, and accessibility requirements. When the opening has a door closer, panic hardware, an automatic operator, or a fire label, select replacement hardware with the door system in mind.
Measure Before You Replace a Door Lever Set
Most standard cylindrical lever sets fit a familiar residential door preparation, but “standard” should be verified rather than assumed. Remove the existing hardware or measure it carefully before ordering the replacement.
The key dimensions are the door thickness, bore hole diameter, edge bore diameter, and backset. Residential doors are often 1-3/8 inches or 1-3/4 inches thick. Commercial doors are commonly 1-3/4 inches thick, although thicker doors and specialty preparations are also used.
The primary cross-bore, the large hole through the face of the door, is typically 2-1/8 inches. The latch edge bore is commonly 1 inch. Backset is the distance from the door edge to the center of the cross-bore. The two common sizes are 2-3/8 inches and 2-3/4 inches. Many residential locks include an adjustable latch, but commercial lever sets may require a specific backset.
Also inspect the strike on the frame. A new latch may work with the existing strike, but only if its opening aligns with the latch bolt. If the old strike is bent, worn, oversized, or poorly positioned, replace it. A strong latch is only as reliable as the strike and the screws anchoring it to the frame.
Check Door Handing and Lever Orientation
Levers can be non-handed, reversible, or handed. A reversible lever can be installed on either a left-hand or right-hand door. Handed commercial hardware is made for a specific swing direction and should be ordered accordingly.
To determine handing, stand on the exterior or secure side of the door. Note whether the hinges are on the left or right and whether the door swings toward or away from you. Manufacturers may describe handing differently, so use their handing chart rather than relying on a verbal description alone. This matters most with keyed commercial levers, mortise locks, trim, and hardware with a curved or directional lever design.
Remove the Existing Hardware Without Damaging the Door
Open the door and support it so it cannot move while you work. On most cylindrical lever sets, a small release hole or slot on the lever neck lets you depress a catch and remove the lever. The interior rose or trim plate can then be removed to expose the mounting screws.
Take out the two through-bolts connecting the inside and outside assemblies. Pull the chassis from both sides of the door, then remove the latch from the door edge and the strike from the frame. Keep the old parts nearby until the new lever set is installed. They are useful for comparing latch length, screw locations, and strike size.
Avoid enlarging holes or forcing components into place. If the new chassis does not line up with the existing preparation, stop and confirm the product specifications. Forcing a lockset can damage the door, bind the spindle, and create a latch that appears to work until the door is closed.

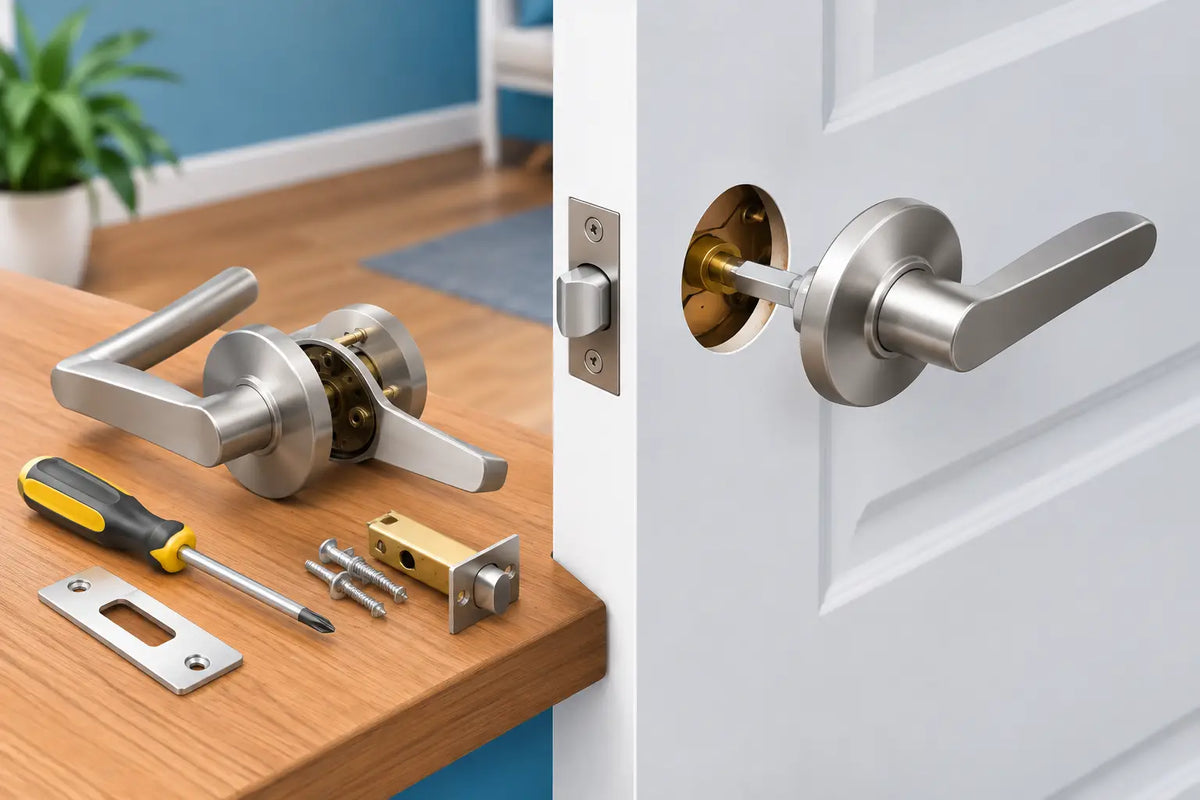

Install the New Latch and Lever Set
Install the latch first. The beveled side of the latch bolt must face the strike plate so it can retract as the door closes. If the latch is installed backward, the door will not close properly and the lever may feel unusually stiff.
Set the latch into the edge bore and fasten it with the supplied screws. The latch face should sit flush with the door edge. If it projects or sits below the surface, check whether the door was previously mortised for a different latch face. A square-corner latch plate and a rounded-corner plate are not always interchangeable without minor door preparation.
Next, insert the exterior assembly through the cross-bore, making sure the spindle or drive mechanism engages the latch. On keyed entry hardware, confirm the key cylinder is on the exterior side. Install the interior assembly and tighten the through-bolts evenly. Do not overtighten them. Excessive pressure can distort the chassis, causing the lever to bind or the latch to retract poorly.
Install the levers according to the manufacturer’s instructions, then operate both sides several times with the door open. The lever should return to its horizontal position without hesitation. The latch should extend fully when the lever is released.
Align the Strike for Secure Latching
Close the door slowly and watch where the latch contacts the strike. The latch should enter the strike opening without lifting, dropping, or pushing the door sideways. If you need to pull the door hard to make it latch, the issue is usually alignment rather than the lever set itself.
Small adjustments to the strike can correct minor misalignment. For a loose-fitting door, adjust the strike opening or tab so the door closes firmly without rattling. For a strike that is significantly out of position, repair the frame or reposition the strike rather than relying on a latch that barely catches.
For exterior doors and higher-security openings, use longer screws that reach the wall framing where appropriate. Short screws only grip the trim or jamb material and offer limited resistance to forced entry. On a fire-rated door assembly, however, use listed and compatible hardware and avoid field modifications that could affect the rating.
Test the Function Before Putting the Door Back in Service
Test the lever with the door open and closed. Confirm that the latch retracts smoothly, the deadlatching feature engages when applicable, and the door latches without pressure. If the lever set is keyed, test every key supplied. If it has a privacy release, verify it operates from the outside as designed.
For a business, test the hardware from the perspective of employees, visitors, and emergency egress. A storeroom lever should secure the room when the door closes while allowing anyone inside to exit without a key. An office lever should match the operating routine of the people who use it. Hardware that is technically installed but confusing to operate can create security gaps and service calls.
If the door is warped, the frame is damaged, or the latch alignment changes with weather, a new lever alone may not solve the problem. Correcting hinge wear, door sag, or frame movement may be necessary for reliable operation.
A properly selected lever set should feel solid, latch cleanly, and suit the way the opening is used every day. Choosing proven residential or commercial hardware from Lockcetera’s locksmith-informed selection gives you a better starting point, but careful measuring and final adjustment are what turn a replacement into dependable door security.
