A glass aluminum storefront door, a clinic entry, and a staff-only school corridor can all benefit from magnetic lock security, but only when the lock is matched to the door, traffic pattern, and life-safety requirements. A maglock is not simply an electric lock added to a door. It is part of an access control and egress system that must operate predictably for authorized users, occupants leaving the building, and facility staff managing the opening.
For business owners and property managers, that distinction matters. The right magnetic lock can provide clean, durable perimeter control with no moving latch bolt to wear at the frame. The wrong application can create nuisance openings, poor access control, or an egress issue that requires expensive correction.
How Magnetic Lock Security Works

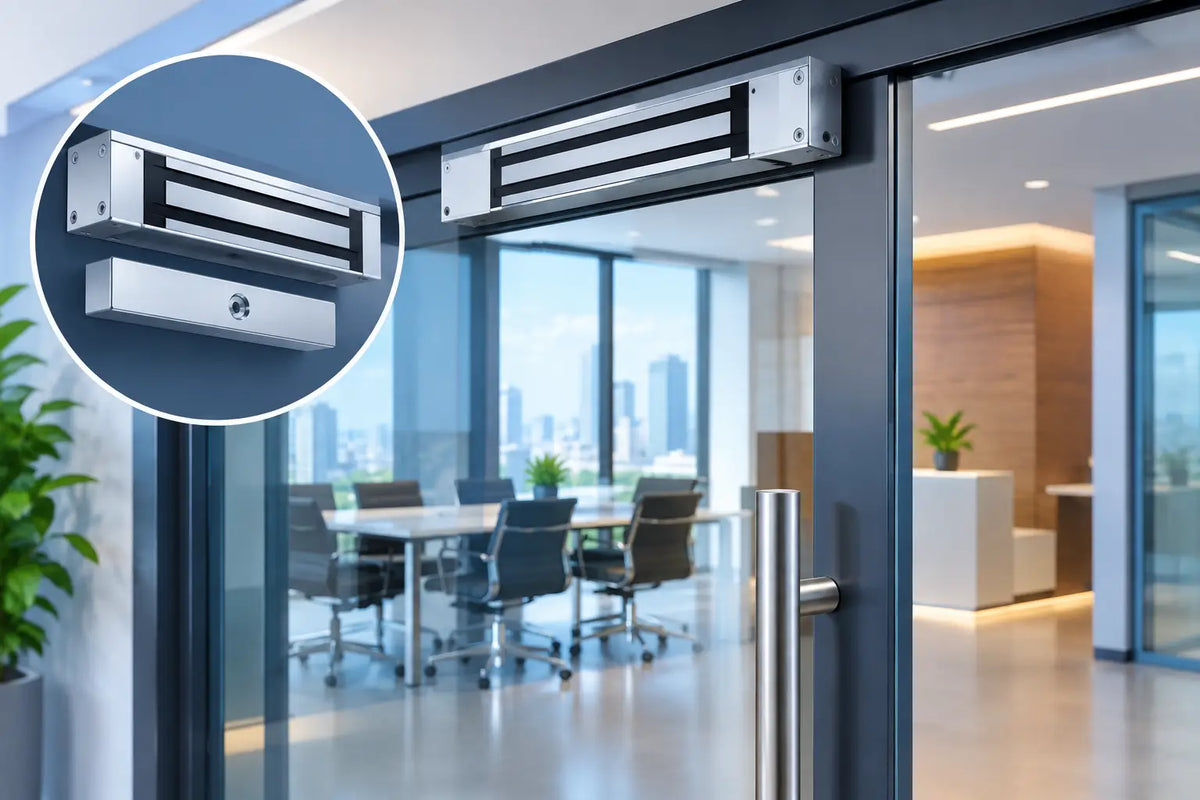

A magnetic lock, often called a maglock, uses an energized electromagnet mounted on the frame and a steel armature plate mounted on the door. When power is supplied, the magnet holds the armature plate tightly against it and keeps the door closed. When power is removed, the door releases.
This operating principle makes magnetic lock security inherently fail-safe. A power loss releases the lock. That is often necessary for code-compliant emergency egress, but it also means the system needs a thoughtful power strategy. A facility that needs access control to continue operating during a short outage may require a properly sized backup power supply. Even with backup power, the release method and fire alarm interface must be designed so occupants can exit safely when required.
Maglocks are commonly selected for aluminum storefront doors, glass doors with appropriate mounting hardware, hollow metal doors, and certain wood door applications. They are particularly useful where a conventional electric strike is difficult to install or where the frame does not accommodate a latch-based solution.
Where Magnetic Locks Fit Best
Magnetic locks are a strong choice when a door needs controlled entry, high cycle durability, and a straightforward release function. They are often found at office entrances, employee-only doors, medical and professional offices, retail back rooms, schools, light institutional facilities, and interior areas that separate public and restricted spaces.
They also work well with credentialed access systems. A keypad, card reader, fob reader, request-to-exit device, intercom, or video entry system can signal the maglock to release for an approved user. This gives a facility more control than distributing mechanical keys, especially when staff changes are frequent. Removing a former employee's credential is generally easier than rekeying multiple doors.
A maglock is not always the best answer. Exterior doors that must remain secure through extended power interruptions may be better served by mechanical locking hardware, an electric strike paired with a latch, or another electrified locking arrangement. Doors exposed to severe weather, doors with heavy abuse, and openings with unusual frame conditions also deserve closer hardware review before selecting a magnet.
Holding Force Is Only One Part of Security
Maglocks are commonly described by holding force, such as 600 pounds or 1,200 pounds. That number is useful, but it should not be the only specification driving the purchase. Holding force is measured under controlled conditions. Real-world performance depends on a properly aligned armature plate, a solid frame mounting surface, correct door preparation, and a door closer that consistently brings the door into position.
A larger magnet is not automatically the better installation. A light-duty interior office door may not require the same hardware as a high-traffic exterior commercial entrance. Oversizing can add cost and installation complexity without solving the actual weak point, which may be the door, frame, hinges, closer, or access control wiring.
The door assembly also needs to be evaluated as a system. A secure lock cannot compensate for loose pivots, a damaged closer, a warped door, or a frame that flexes under pressure. On aluminum storefront doors, proper brackets and armature mounting hardware are often essential. On glass doors, the selected mounting method must be compatible with the glass and door construction rather than relying on improvised drilling or adapters.
The Door Must Close Reliably
A magnetic lock only reaches its rated holding performance when the armature contacts the magnet correctly. If a door drags, rebounds after closing, or stops short because the closer is poorly adjusted, the lock may not secure consistently.
Before installing access control hardware, inspect the opening. The door should swing freely, latch or align correctly when closed, and be supported by hardware suited to its weight and traffic level. Correcting basic door issues first usually produces a more dependable result than trying to compensate with a stronger magnet.
Egress and Fire Alarm Release Cannot Be an Afterthought
Because maglocks rely on electricity to remain locked, release requirements are central to the design. The details vary by occupancy type, local code, and the authority having jurisdiction, but the basic goal is consistent: people must be able to leave without special knowledge, a credential, or unreasonable delay.
Many installations use a request-to-exit sensor, a push-to-exit station, or both, depending on the opening and applicable requirements. The system may also need to release upon fire alarm activation. These components must be wired and configured correctly, not treated as optional accessories added after the lock is installed.
This is especially significant in schools, health care settings, assembly areas, and multi-tenant commercial buildings. A door that appears secure from the exterior may create an unacceptable condition on the egress side if the release sequence is wrong. Building codes and fire codes can differ by jurisdiction and project conditions, so final hardware selection and installation should be reviewed against local requirements before purchase or installation.
Do not confuse a maglock with a delayed-egress or controlled-egress solution. Those applications can involve additional code requirements, monitoring, signage, alarms, and approved release behavior. They require a complete system approach rather than a standard access-controlled maglock package.
Build the Complete Access Control Package
The lock is only one component. A dependable magnetic lock security installation typically includes a listed power supply, appropriate wire, an access control method, door position monitoring when needed, and release devices selected for the opening. For managed properties, status monitoring can be valuable because it tells staff whether a door is actually closed and secured rather than merely commanded to lock.
Consider how people use the door throughout the day. A single staff entrance may only need a keypad and exit sensor. A busy office may benefit from card or mobile credentials, a door operator interface, scheduled unlock periods, and audit capability. A storefront rear door may need a credential reader outside, a request-to-exit device inside, and a monitored alarm contact after business hours.
Automatic door operators require additional coordination. The operator, lock, access reader, safety sensors, and door control must be sequenced so that an authorized user can release the lock and operate the door safely. This is a common area where commercial-grade components and experienced installation planning make a measurable difference.
Common Specification Mistakes to Avoid
The most common mistake is selecting a maglock based on holding force alone. The second is overlooking the power and release path. A lock may look properly mounted yet fail the purpose of the opening if its power supply is undersized, its exit device is incorrectly located, or its fire alarm release is not properly integrated.
Another frequent issue is ignoring door condition. Access control hardware cannot correct a door that does not close consistently. Likewise, using a maglock on an opening that needs positive mechanical latching can leave a facility with an arrangement that does not match its security or code needs.
Finally, avoid mixing components without confirming compatibility. Readers, controllers, power supplies, request-to-exit sensors, and locking devices have voltage, relay, current, and monitoring requirements that must work together. Commercial hardware is most reliable when the full system is specified around the actual opening rather than assembled from unrelated parts.
Choosing a Practical Path Forward
Start with the door and the use case: who needs entry, who needs to exit, what happens during a power failure, and whether the opening is part of a required means of egress. From there, select a magnetic lock and supporting components that fit the door construction, traffic level, and operational needs.
Lockcetera's locksmith-informed approach to commercial hardware is useful here because product selection should follow the opening, not a generic shopping list. A properly planned magnetic lock installation gives staff controlled access without turning a busy door into a daily maintenance problem. The best next step is to document the door, its frame, its current hardware, and its intended access rules before choosing the lock.
