If you are planning a low energy door operator installation guide for a clinic entrance, office suite, school, or small retail storefront, the real work starts before the operator ever goes on the frame. Most installation problems are not caused by the motor unit itself. They come from the opening condition, the wrong arm selection, poor wiring planning, or an operator being asked to fix a door that already binds, drags, or closes incorrectly.
Low energy operators are designed to automate a swing door at a controlled speed with reduced force compared with full-power systems. They are common on ADA-focused openings where push plates or touchless activation make the door easier to use without converting the entrance into a high-traffic automatic sliding or full-power swinging system. That makes them practical, but not forgiving. The operator has to match the door, the frame, the handing, the activation method, and the code requirements for the application.
Before You Start the Low Energy Door Operator Installation Guide
Start with the door itself. A low energy operator should never be installed on an opening that is already performing badly. If the hinges are worn, the frame is out of alignment, the latch binds, or the closer setup is wrong, the operator will struggle from day one. That usually shows up as inconsistent opening, nuisance reversals, short motor life, or doors that fail to latch cleanly.
Check the door weight and width against the operator rating. This is basic, but it gets missed. A narrow interior aluminum storefront door places different demands on an operator than a heavy wood door with a full perimeter seal. The opening force, backcheck behavior, and latch resistance all matter. If the operator is near its limit on paper, real-world performance can still disappoint.
You also need to confirm the mounting style. Some operators are designed for pull side mounting with a standard arm, while others use a slide track or push side configuration. The correct choice depends on clearance, reveal depth, frame construction, and how people will approach the opening. In a tight corridor, one arm style may fit while another creates a clearance problem.
Power planning matters just as much. Some units are low voltage with a separate power supply, while others require direct line voltage. Verify the electrical requirements early, along with fire alarm interface, access control integration, and actuator locations. It is much easier to plan conduit and wall box placement before the unit is on site than after the header is already drilled.
Evaluate the Opening Like a Hardware Pro
A proper low energy door operator installation guide has to treat the door as a complete opening, not just a powered accessory. Look at the hinges or pivots, the closer or spring tension if one is present, the strike alignment, and any weatherstrip that adds drag. On exterior doors, stack pressure and air movement can change how the operator behaves, especially on vestibule setups or doors exposed to prevailing wind.
Handing should be confirmed at the opening, not assumed from a purchase order. Left hand, right hand, inswing, outswing, pull side, and push side details affect arm type, cover orientation, and setup steps. If the operator has field-reversible handing, that helps, but it does not remove the need to verify how the door actually swings in use.
This is also the point where code and accessibility considerations come into play. Door opening force, closing time, sensor requirements, knowing act activation, and signage can vary by jurisdiction and by the specific opening type. A restroom door, healthcare opening, and retail entry may not be treated exactly the same. If the project is in a regulated commercial environment, code review is part of installation, not an afterthought.

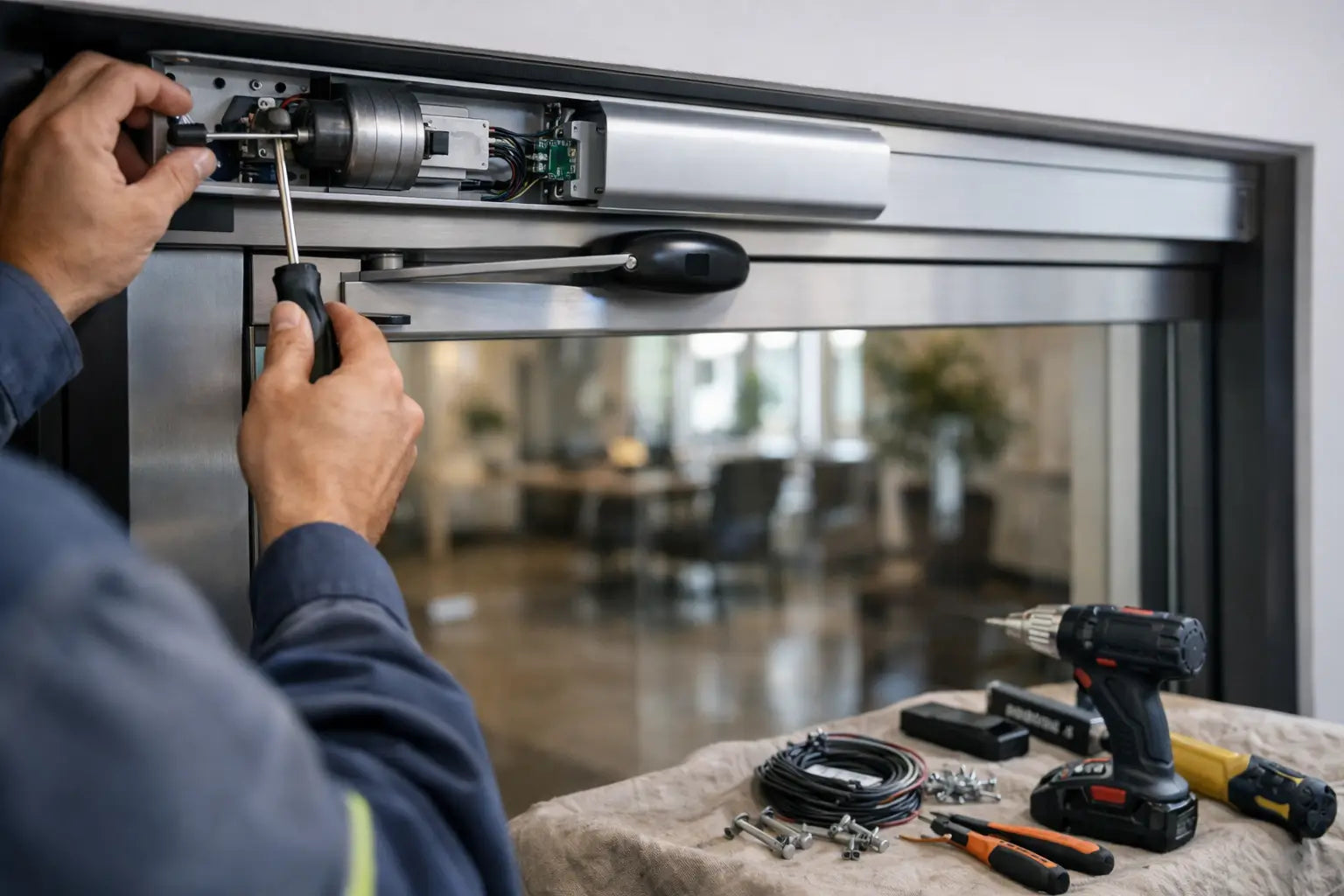

Mounting the Operator Body and Arm
Once the opening is confirmed, use the manufacturer template exactly. That is not just a convenience sheet. It establishes the operator location, spindle position, arm geometry, and fastener layout. Small drilling errors can create major issues in swing path and power transfer.
The header and frame material determine your fastening method. Hollow aluminum storefront, reinforced steel, and wood headers all need different hardware. If the frame is weak or unreinforced, the operator may loosen over time, especially on exterior openings or high-cycle doors. In some cases, a reinforcement plate is the right answer rather than trying to make standard screws hold in marginal material.
Mount the operator square and level. A slightly twisted body can affect spindle alignment and arm motion. Install the arm with the manufacturer-specified preload and geometry. This is one area where installers can get into trouble by eyeballing it. If the arm is one spline off, or the slide track position is slightly wrong, the door may open too far, stall before full opening, or fail to close with proper control.
For paired doors with one active leaf, check the inactive leaf and astragal condition as well. Door movement, overlap, or warped meeting edges can interfere with operator performance even if the active leaf installation is technically correct.
Wiring, Activation, and Controls
Wiring should be clean, protected, and planned around serviceability. Whether the operator uses hardwired wall plates, wireless transmitters, wave sensors, card readers, or a combination of inputs, each device needs the correct signal type and voltage. Follow the wiring diagram that belongs to the exact operator model, not a similar one from another brand.
Push plates are still common because they are durable, simple, and easy for users to understand. Touchless activation is also popular, especially in healthcare, food service, and restroom applications. The trade-off is that touchless devices can be more sensitive to placement and accidental activation. If a wave plate sits too close to a walking path or door swing area, you can create nuisance openings.
If the opening includes electric strikes, magnetic locks, latch retraction, or access control sequencing, timing becomes important. The operator should not try to move the door before the lock release is complete. Likewise, delayed relock timing needs to allow the door to return and latch normally. This is where commercial-grade components earn their keep. Better hardware integrates more predictably and holds adjustment longer.
Setup and Adjustment After Installation
The mechanical installation is only half the job. Initial setup is where the opening becomes usable.
Set the opening speed, backcheck, hold-open time, and closing speed according to both the manufacturer instructions and local code requirements. Faster is not better. A low energy operator is meant to move the door in a controlled, safe manner. If it snaps open or pushes through the latch too aggressively, something is wrong in the adjustment or the door condition.
Check the door through repeated cycles. Watch the full movement from cracked open to latched. Listen for binding, arm noise, motor strain, and latch impact. On exterior openings, test with normal building pressure conditions if possible. A door that runs fine during an open loading dock condition may behave differently once the building is closed up.
Also test from every intended activation point. A push plate on the wall, a handicap bollard outside, and an access reader at the frame may all trigger the same operator, but they can affect user flow differently. Make sure the hold-open time gives people enough time to pass without leaving the opening exposed longer than necessary.
Common Problems During a Low Energy Door Operator Installation Guide
When a new operator does not perform well, the cause is often upstream. A misaligned strike can make it seem like the operator lacks power when the real problem is latch interference. Excessive weatherstrip drag can make the door slow on opening and hard on closing. Incorrect arm geometry can create a rough or hesitant swing that looks like an electrical fault but is really a mounting issue.
Another common mistake is trying to reuse unsuitable existing hardware. If the hinges are worn out or the closer is fighting the operator, replacing the operator will not solve the opening. The same goes for underpowered electrical supply or poorly placed actuators.
There is also an application mistake that shows up regularly: using a low energy operator where a higher-duty or full-power solution is the better fit. If the opening handles carts, frequent traffic, or heavy access control demands, the low energy unit may not be the right long-term answer. It depends on cycle count, user type, door mass, and how automated the entrance needs to be.
When to Call for a More Advanced Plan
A straightforward interior office door is one thing. A fire-rated corridor opening, aluminum storefront with access control, or healthcare entry with multiple activation points is another. The more systems that touch the opening, the more valuable it is to slow down and confirm the hardware schedule, electrical plan, and code path before installation begins.
That is especially true when you are selecting from commercial brands with different mounting options, control boards, and accessory ecosystems. A product that fits the opening physically may still be the wrong choice operationally if the site needs better traffic handling, easier integration, or specific compliance features. This is where a locksmith-informed hardware supplier can save time by helping match the operator to the actual opening instead of just the rough door size.
A low energy operator should make access easier without creating a maintenance headache. If you start with a sound opening, use the correct template and arm, wire the controls properly, and adjust the system with patience, you will end up with an entrance that feels controlled, dependable, and worth the upgrade.
