An electric strike can make a side entrance, office suite, clinic, or managed residential door easier to control without replacing the mechanical lock on the door. But electric strike wiring is where many otherwise sound access-control installations fail. A strike may buzz without releasing, release only when the door is pushed hard, stay unlocked after a power event, or work perfectly for a week before an overloaded power supply creates trouble.
The fix is rarely just connecting two wires. Reliable operation depends on matching the strike, power supply, control device, lock hardware, door alignment, and local code requirements. Before selecting wire or opening a frame, define how the opening must behave under normal use and during a power failure.
Electric Strike Wiring Starts With Door Function

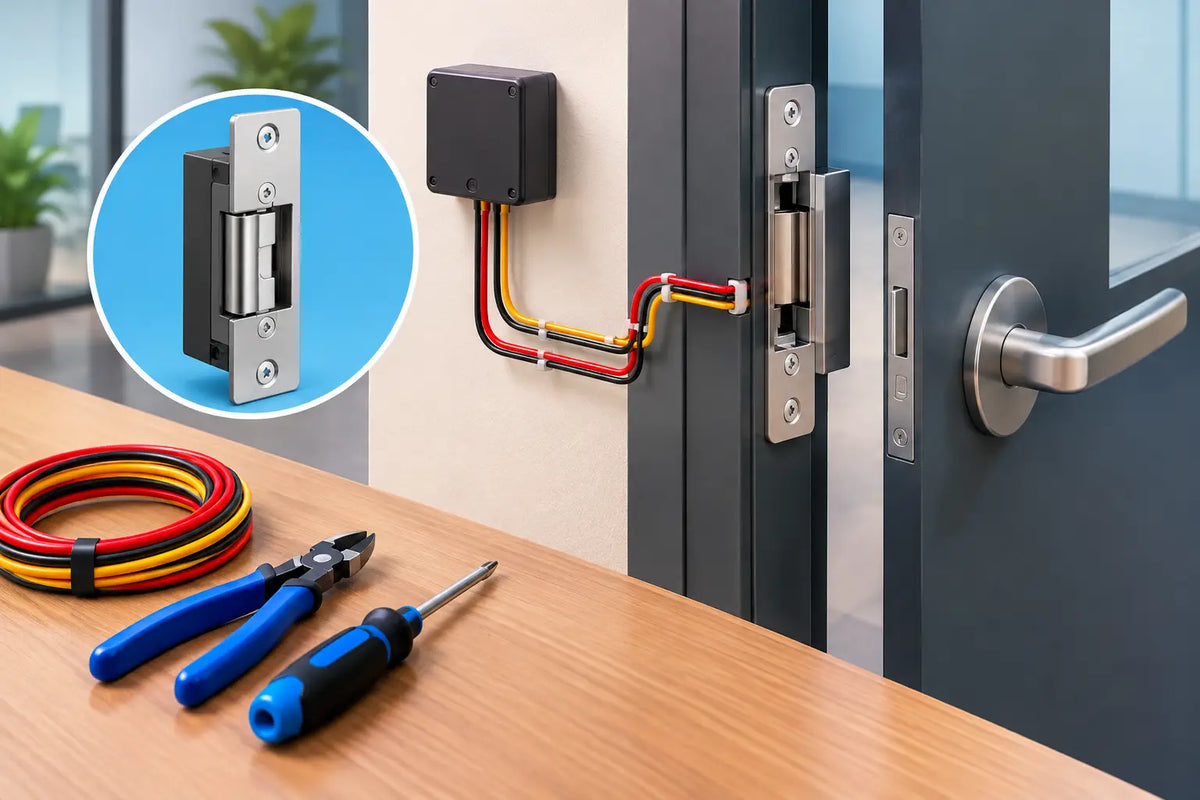

An electric strike replaces the fixed strike plate in the frame. When energized or de-energized, depending on its configuration, it releases the latch so the door can be opened. The door still needs compatible mechanical hardware: typically a spring latch or deadlatch from a cylindrical lock, mortise lock, or exit device. A deadbolt alone will not work with a standard electric strike unless the strike is specifically designed for that bolt and application.
Start with the required security behavior. A fail-secure strike remains locked when power is removed and unlocks when power is applied. This is common on exterior doors, employee entrances, and openings where security during a power loss is the priority. A fail-safe strike unlocks when power is removed and requires power to stay locked. It is used where free egress or emergency release requirements call for an unlocked condition during a power failure.
Neither choice is automatically right. A back-of-house exterior door may need fail-secure operation, while a door serving a space with a specific life-safety requirement may need a different locking approach altogether. The authority having jurisdiction, fire code, occupancy type, and existing egress hardware all matter. Do not treat a strike as a shortcut around required panic hardware, fire-door listings, or accessibility requirements.
Voltage is the next decision. Many commercial strikes are available in 12 or 24 VDC, and some accept either voltage. DC is usually preferred for access-control systems because it works cleanly with card readers, keypads, request-to-exit devices, and battery-backed supplies. Verify the manufacturer’s voltage range rather than assuming a dual-voltage model can use any available power source.
Plan the Circuit Before Pulling Cable
A basic system has a power source, a switching device, an electric strike, and often a credential reader or release control. The reader may send a signal to an access-control panel, which then changes the state of a relay. That relay controls power to the strike. A simpler system may use a keypad with an integral relay or a momentary push button that energizes the lock circuit directly.
The diagram supplied with the strike and the control equipment should govern the final connection. The key point is to identify whether the relay is switching positive or negative, whether it is normally open or normally closed, and what the strike requires in its resting state. A fail-secure strike commonly uses a normally open release circuit because it needs power to unlock. A fail-safe device often uses a normally closed circuit so power is present to keep the opening secured. Confirm this from the product documentation, not from a rule of thumb.
Wire size depends on cable length, strike current draw, supply voltage, and allowable voltage drop. Undersized wire is a common cause of intermittent releases, especially on 12 VDC installations. The strike may receive enough voltage when tested with the door open but not enough to operate consistently under real conditions, after connectors age, or when other devices share the same power supply.
For a short low-current run, 18 AWG stranded security cable may be appropriate. Longer runs or higher-current strikes can require 16 AWG or 14 AWG conductors. Use the strike manufacturer’s current specifications and calculate the full circuit length, including both outbound and return conductors. Do not rely on the distance from the power supply to the door alone.
When the opening includes a reader, door position switch, request-to-exit sensor, and powered locking hardware, use separate cable runs or a properly rated composite access-control cable as the design calls for. Keep low-voltage wiring organized, labeled at both ends, and protected from sharp metal edges. A door loop, electrified hinge, or power-transfer device may be necessary where wiring must pass from the frame into the door, although a frame-mounted strike itself generally avoids that need.
Install for Mechanical Release, Not Just Electrical Response
A strike can be wired correctly and still fail because the latch is binding against the keeper. Before applying power, close the door slowly and observe how the latch enters the strike opening. The latch should engage fully without forcing the door, lifting the handle, or pulling the door tight against the weatherstrip.
This is especially important on aluminum storefront frames, hollow metal doors, wood frames that move seasonally, and doors with worn hinges. If the latch puts side pressure on the strike keeper, the solenoid may operate but the keeper cannot release freely. Users then have to pull or push the door at exactly the right moment. That is not reliable access control.
Many commercial strikes include adjustment features, faceplates, shims, or keeper options for cylindrical latchbolts, mortise locks, and rim exit devices. Select the configuration for the installed hardware and frame preparation. Do not enlarge a listed fire-rated frame or modify an exit device without confirming that the method is permitted for that opening.
Where the door has an automatic operator, coordinate the strike release time with the operator activation. The strike must release before the operator applies opening force. If the unlock time is too short, the latch can re-engage before the door moves. If it is too long, the opening may remain unsecured longer than necessary. A few tenths of a second can make a noticeable difference on a busy entrance.
Power Supplies, Protection, and System Reliability
Use a regulated power supply rated for the strike and all connected equipment, with capacity to spare. A supply that is barely large enough on paper can cause trouble when a door operator, reader, sounder, or multiple locking devices activate at once. For openings that must continue operating during a short outage, choose a properly designed battery-backed access-control power supply and size the battery for the required load and standby time.
Protect the circuit from electrical noise and switching spikes. Many strikes have built-in suppression, but some require an external diode, MOV, or other suppression device. The required method depends on whether the circuit uses DC or AC and on the manufacturer’s instructions. A diode installed with reversed polarity can create a direct short when power is applied, while using a DC diode on an AC circuit is equally inappropriate.
A serviceable installation also includes a way to isolate and test the opening. Label the power supply output, relay terminals, and field wiring. Leave enough slack for future service without stuffing excess cable into a frame cavity. At Lockcetera, the practical goal is the same whether the project is a single office door or several managed openings: use commercial-grade components that can be identified, tested, and maintained years later.
Test Electric Strike Wiring Under Real Conditions
Testing should go beyond hearing a click at the frame. With the door closed, verify that the authorized credential, keypad code, desk release, or push button releases the latch every time. Test the opening while lightly pushing and pulling the door, since normal pressure changes can reveal alignment problems.
Then test loss of power. Confirm that the actual result matches the intended fail-secure or fail-safe behavior. Test request-to-exit operation, door position monitoring, and any alarm or access-control reporting. If the opening is part of a fire or life-safety system, coordinate testing with the responsible alarm and building personnel.
A multimeter is useful for checking voltage at the strike while it is commanded to release. Measure at the device, not only at the power supply. A significant voltage drop points to undersized conductors, excessive run length, poor splices, corroded terminations, or a power supply that is not carrying the load.
Common symptoms narrow the diagnosis quickly. A strike that clicks but will not open usually points to door pressure or incorrect strike alignment. A strike that never actuates may have no voltage, an incorrect relay state, an open conductor, or a failed coil. A strike that becomes hot may be receiving continuous power when it is not rated for continuous duty, or it may be wired for the wrong voltage. Correct the underlying cause rather than increasing release time or forcing the keeper adjustment.
The best electric strike installation is unremarkable to the people using the door. Credentials release the latch when authorized, the door closes and latches securely, egress remains clear, and maintenance staff can understand the circuit when service is needed. Start with the opening’s required behavior, follow the hardware documentation, and involve a qualified access-control or electrical professional whenever code, fire ratings, or life safety are part of the job.
